Core Configuration
- Laser SourceMAX laser source
- Laser HeadRaytools cutting head
- Machine BodyTekkaform
- Gear and RackTaiwan YYC
- ReducerFrance Motovario
- X/Y MotorsINOVANCE
- Control SystemCypcut 2000E
- Water ChillerS&A Water Chiller
Laser Equipment
Laser Equipment

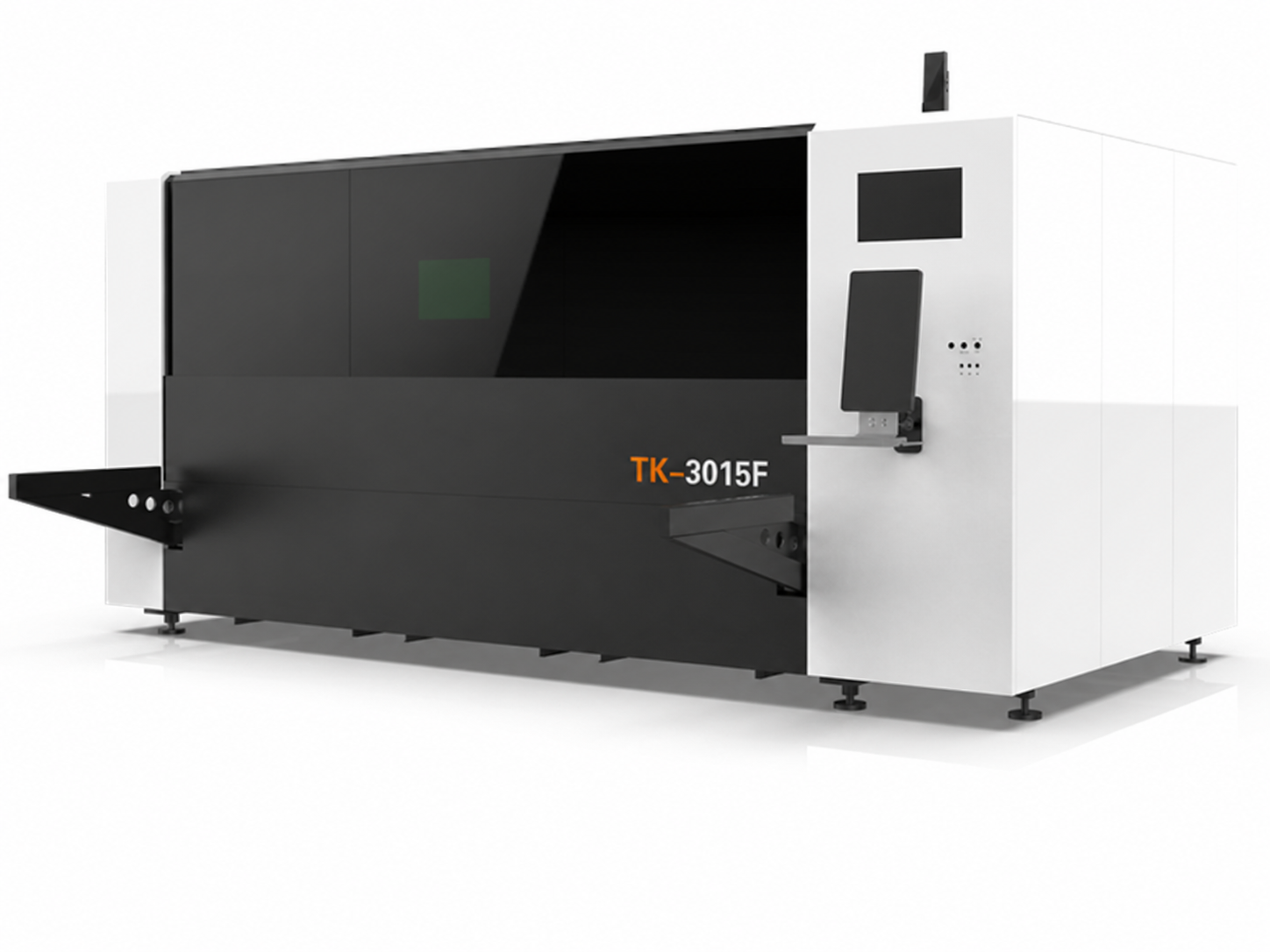

Fiber Laser Cutting Machine
Enclosed TK-3015F fiber laser cutting for high-speed sheet-metal production.
TK-3015F is a fully enclosed fiber laser cutting machine with a 3000 x 1500mm processing range, 3000W MAX laser source, pull-out platform, and automatic oiling.
- Power
- 3000W MAX
- Work area
- 3000 x 1500mm
- Speed
- 80m/min
- Accuracy
- ±0.02mm repeat
Media
Machine specifications
Production Fit
- Best ForHigh-speed enclosed fiber laser cutting
- Container20GP; cannot accommodate other large accessories
- ProtectionAll closed protective cover
- LubricationAutomatic oiling
Full technical specification18 items
| Technical Specifications | |
|---|---|
| Model | TK-3015F |
| Maximum Processing Range | 3000 x 1500mm |
| X-axis Travel | 3000mm |
| Y-axis Travel | 1500mm |
| Z-axis Travel | 100mm |
| Positioning Accuracy | ±0.03mm |
| Repeat Positioning Accuracy | ±0.02mm |
| Max Moving Speed | 80m/min |
| Max Cutting Speed | 80m/min |
| Maximum Acceleration | 1.2G |
| Transmission Type | Dual drive rack |
| Z-axis Motor Power | 400W |
| X/Y-axis Motor Power | X-axis: 850W; Y-axis: 1.3KW |
| Working Platform Load | 500kg |
| Enclosed Laser Protection | Yes |
| Power Available | 1000-6000W |
| Dimension | 4700 x 3350 x 2450mm |
| Total Weight | 5500kg |
Plan a fiber laser workflow
Need help configuring TK-3015F for your shop?
Share your material range, target thickness, and production volume. Tekkaform can help confirm the right fiber laser setup.
