Channel Benders

EX-LITE SERIES

Tekkabend EX-L Channel Letter Bender

Compact, cost-effective bending for aluminum profiles and flat coils up to 7 in.

Tekkabend EX-L combines automatic feeding, stable square-rail cutting, and intelligent arc bending in a compact platform for growing sign shops.

Best For
Aluminum trim cap, F returns / Korean profiles, Foam + PVC Channelume, and premium illuminated letters
Material Width
Up to 180 mm / 7 in
Material Thickness
0.3-1.2 mm / approx. 0.012-0.047 in
Control System
Five-axis coordinated CNC
Get Quote View Specifications

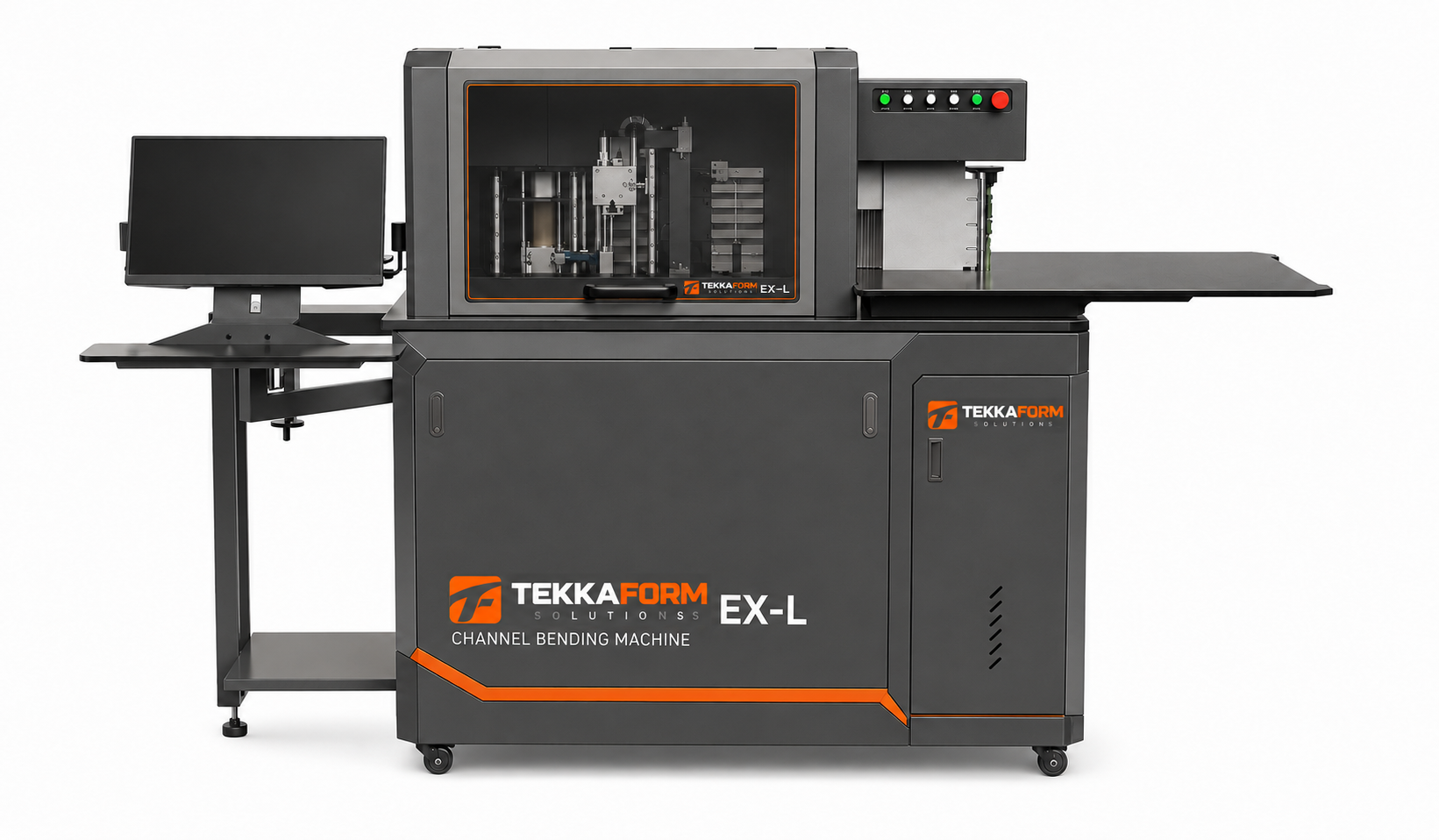

Tekkabend EX-L

Media

Tekkabend EX-L
Tekkabend EX-L detail

Letter applications

What Tekkabend EX-L can make.

Trimless letter applications using compatible aluminum profiles and flat coils, with clean illuminated faces and defined returns.

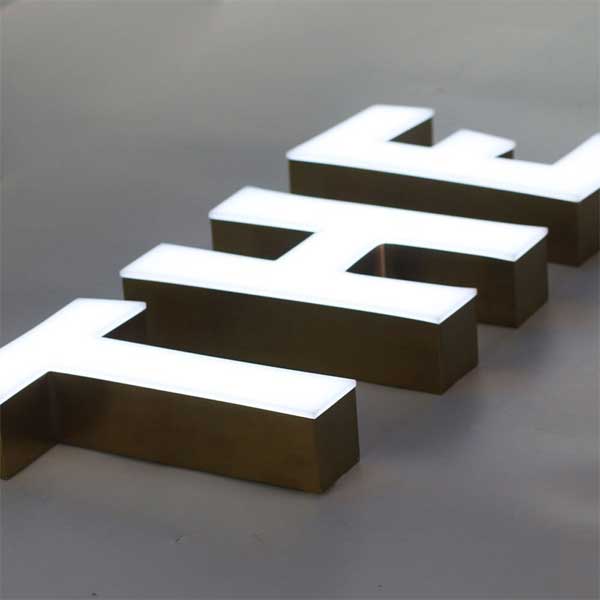

White illuminated trimless channel letters with dark returns — finished-letter reference 01 Front-lit trimless letters Bright white faces and dark returns with no visible trim cap. Red front-lit trimless letters with shaped aluminum returns — finished-letter reference 02 Colour-face trimless letters Coloured faces for distinctive retail and interior signage. Close-up of white acrylic faces and metal returns on trimless letters — visual reference 03 Clean acrylic-face detail An uninterrupted illuminated face with a crisp edge transition.

Machine specifications

Material Range

  • Profile WidthUp to 180 mm / 7 in
  • Thickness0.3-1.2 mm / approx. 0.012-0.047 in
  • ProfilesTrim cap, F returns / Korean profiles, Foam + PVC Channelume
  • Flat MaterialsFlat sheet, edge strip, folded profiles, and flat coils

Production Fit

  • Best ForGrowing sign shops producing premium illuminated letters
  • WorkflowAutomatic feeding, slotting, cutting, and arc bending
  • PrecisionFinished-product deviation below 0.1 mm
  • Shop BenefitCompact footprint, simpler setup, and practical operating cost
Full technical specification18 items
Technical Specifications
ModelTekkaform EX-LITE
Product TypeCompact CNC channel letter bending machine
Working PrincipleAutomatic feeding, material alignment, slotting, and arc bending
Axis / StructureFive-axis coordinated mechanical structure
Cutting SystemSquare rail positioning with alloy cutting blade
Cutting MotorDC motor cutting system
Material CompatibilityAluminum trim cap, F returns / Korean profiles, Foam + PVC Channelume, edge strip, folded profiles, and flat coils
Profile WidthUp to 180 mm / approx. 7 in
Slotting Angle45-120 deg; flat materials have no angle limitation
Minimum Bending RadiusAt least 5 mm
Material Thickness0.3-1.2 mm / approx. 0.012-0.047 in; aluminum edge strip up to 1.2 mm
PrecisionFinished-product deviation from source file: less than 0.1 mm
File FormatsDXF, PLT
Power1500 W
Rated Voltage120 V, 50-60 Hz
Working Air Pressure0.3-0.8 MPa
Machine Size2000 x 900 x 1550 mm / approx. 78.7 x 35.4 x 61.0 in
Machine Weight340 kg

Plan a production workflow

Is EX-L the right compact configuration for your shop?

Share your profile type, material width, and production goals. Tekkaform can confirm the right setup.
