Material Range
- Material HeightUp to 200 mm / 7.87 in
- Thickness0.3-1.2 mm
- Metal CoilsStainless steel, galvanized sheet, iron, aluminum, and copper
- ProfilesEdge aluminum, aluminum profiles, and special-shaped profiles
Channel Benders
EX-PRO SERIES

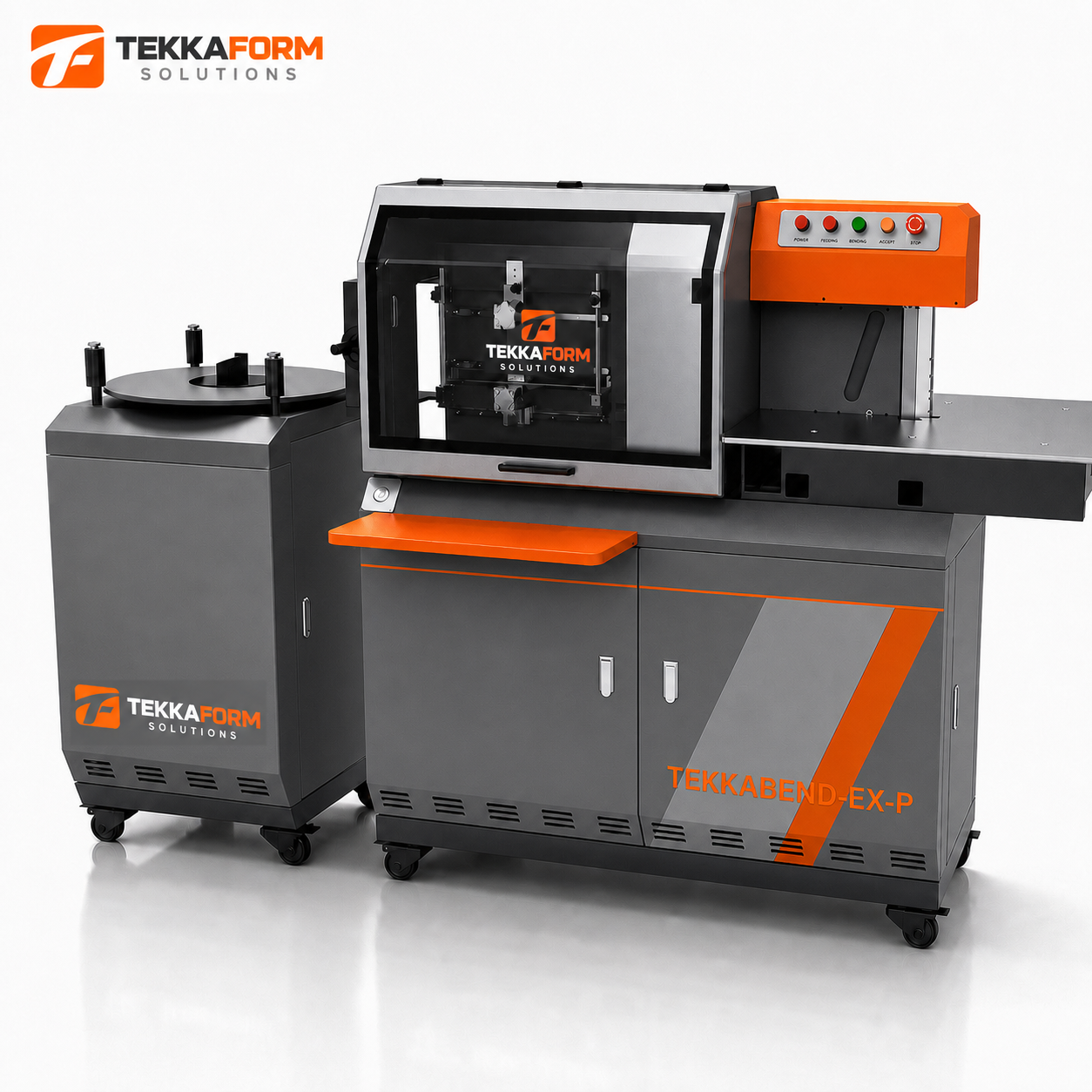

Tekkabend EX-P Channel Letter Bender
A flexible all-in-one platform for broad metal and profile production.
Tekkabend EX-P combines independent double slotting, switchable bending structures, high-power servo control, and closed-loop length control for demanding sign production.
- Best For
- Trim cap-free channel letters, aluminum-return channel letters, resin-filled LED letters, liquid acrylic letters, extruded aluminum channel letters, aluminum-faced foam letters, side-lit channel letters, face-lit channel letters, halo-lit letters, and custom fabricated aluminum letters.
- Slotting
- Planer Cutter + Precision Milling Cutter
- Material Thickness
- 0.3-1.2 mm
- Material Height
- Up to 200 mm / 7.87 in
Media
Letter applications
What Tekkabend EX-P can make.
Finished-letter references and construction visuals for versatile metal, profile, and premium illuminated-letter work.
01
Trimless and halo-lit letters
Premium open-back returns for illuminated channel letters
02

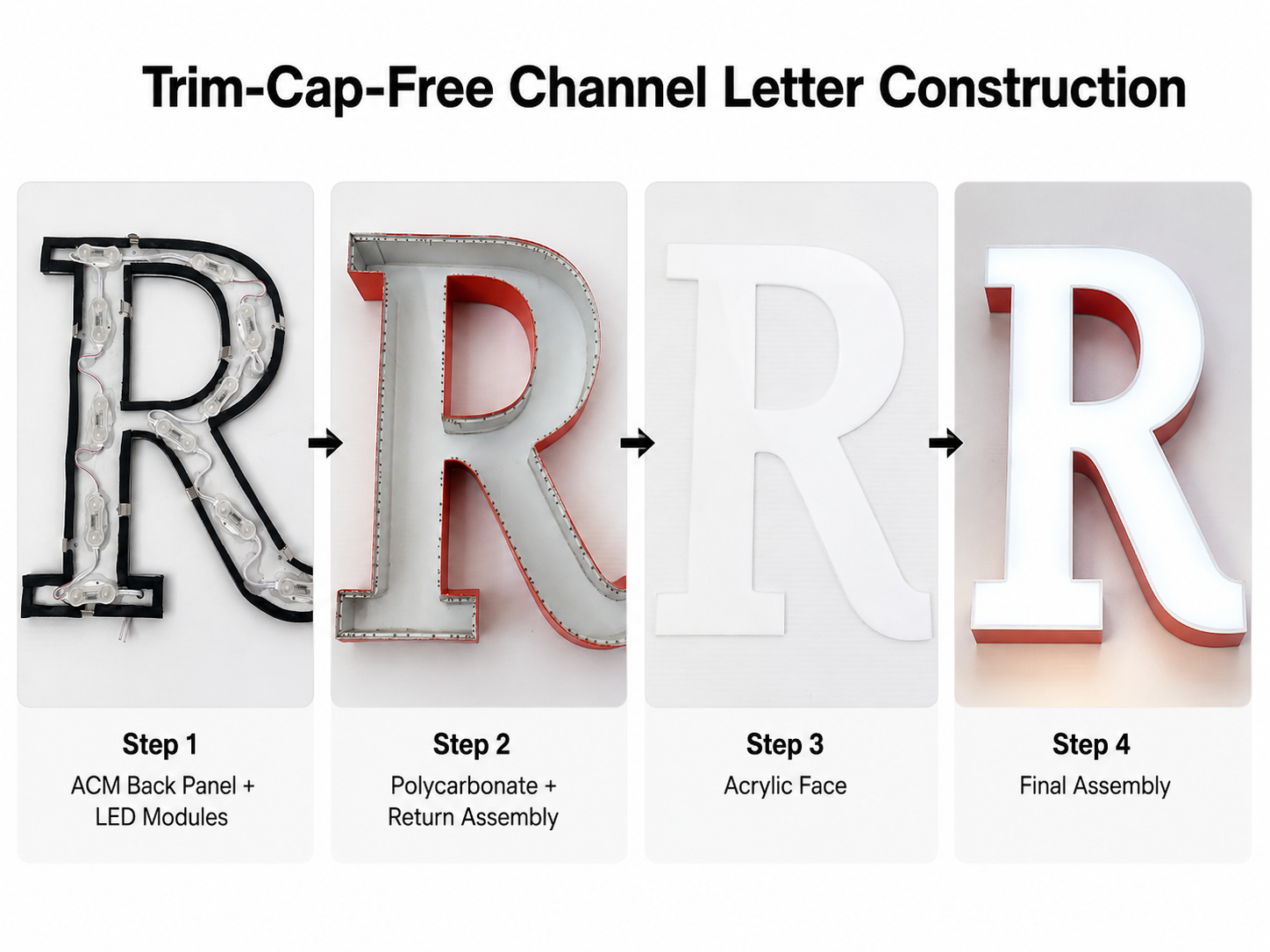

Trim-cap-free construction
A clear four-step build from back panel to final assembly
03

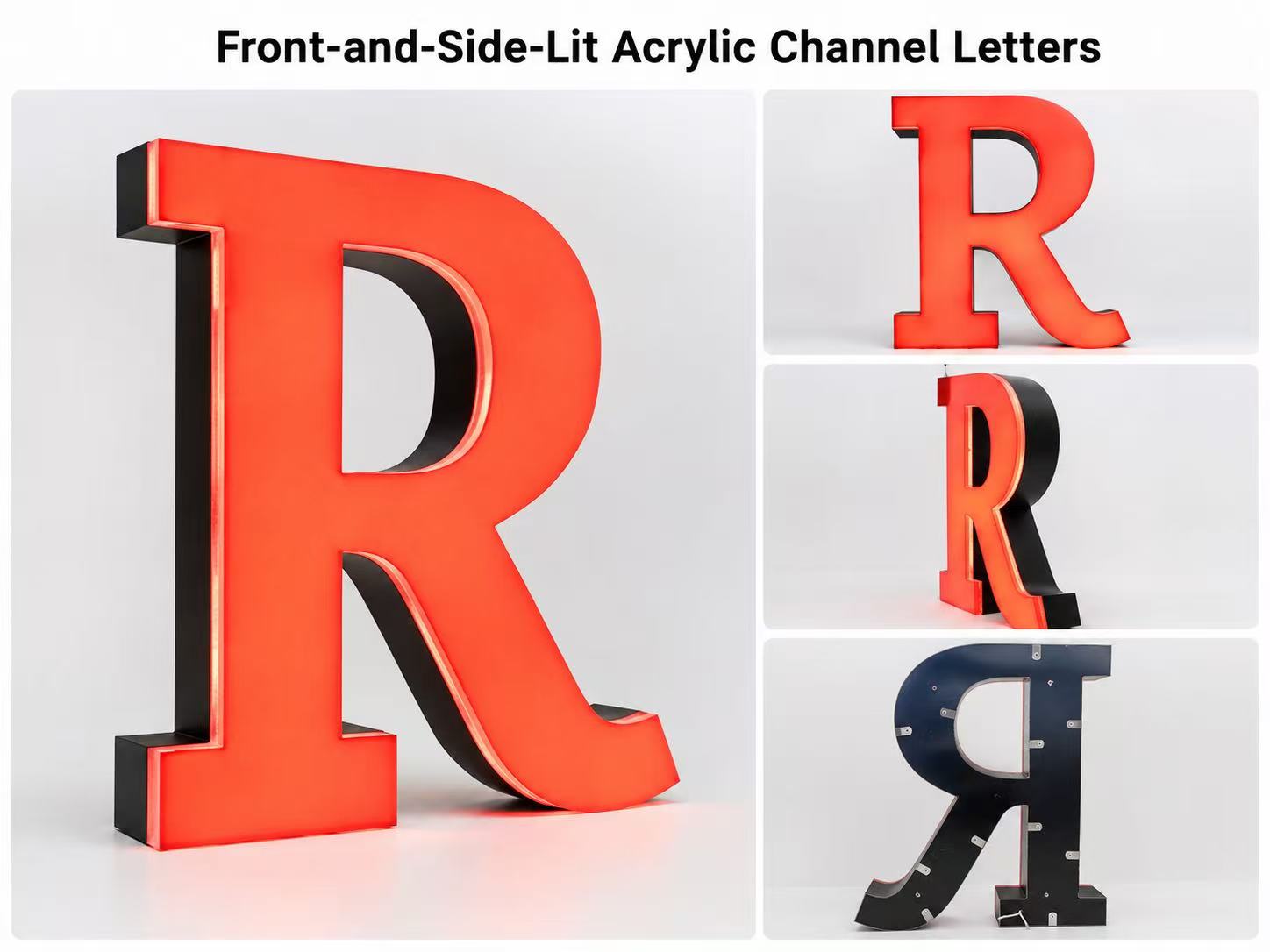

Front and side-lit letters
Defined faces and returns for multi-surface illumination
04

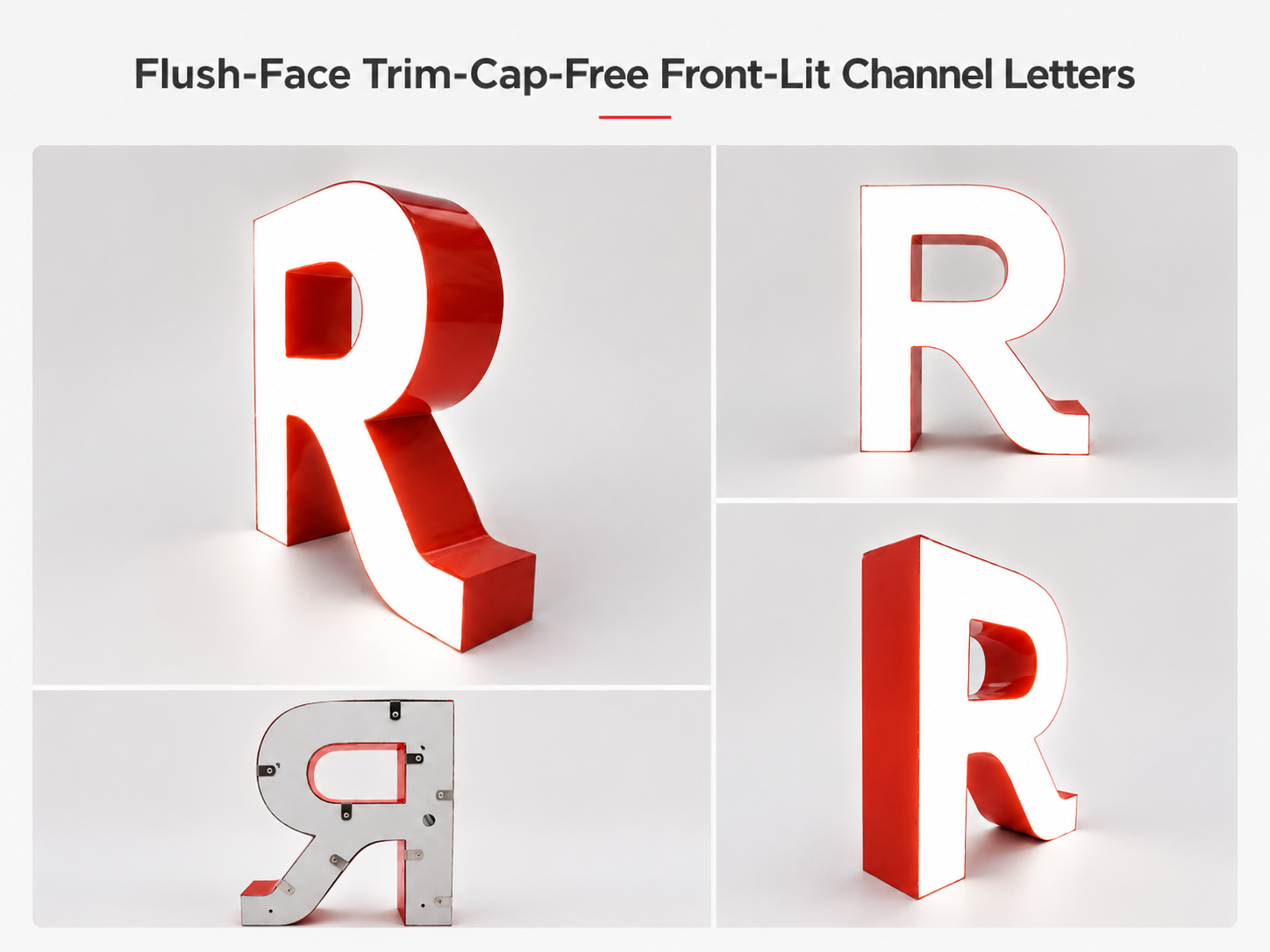

Flat-edge channel letters
Straight return profiles for refined edge treatments
05

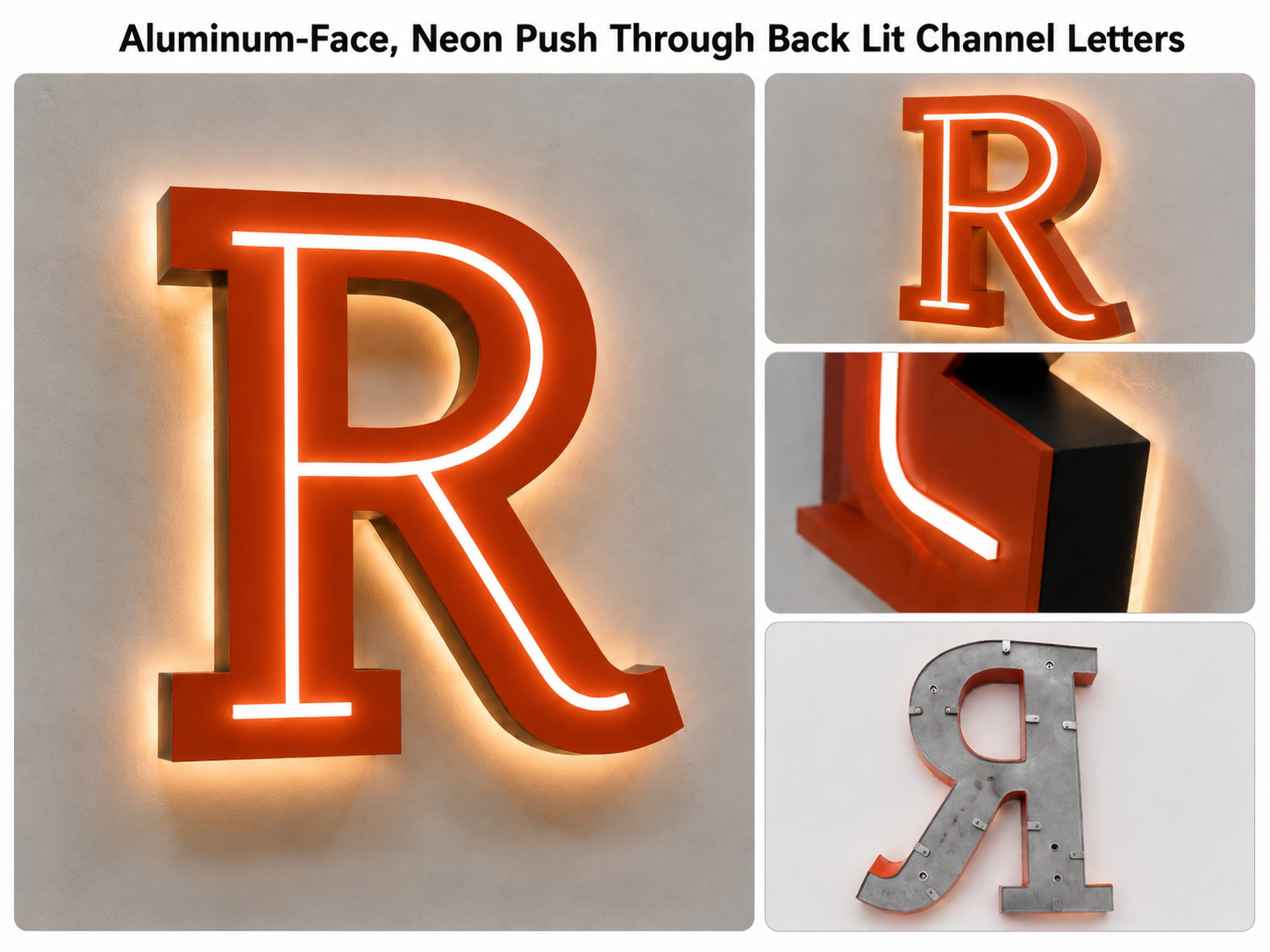

Neon push-through letters
Layered lighting details with a premium visual finish
Machine specifications
Production Fit
- Best ForLarge-format and special-shaped metal sign production
- SlottingIndependent planer and precision milling systems
- BendingSwitchable structures for metal coils and profiles
- Shop BenefitBroad material capability consolidated in one machine
Full technical specification25 items
| Technical Specifications | |
|---|---|
| Model | Tekkaform EX-PRO |
| Product Type | Automatic all-in-one multifunctional channel letter bending machine |
| Main Functions | Automatic feeding, slotting, cutting-depth calibration, material processing, bending, and profile / coil forming |
| Slotting System | Independent double slotting: planer cutter and precision milling cutter |
| Planer System | Hard-alloy blade inserts with automatic blade alignment and cutting-depth adjustment |
| Milling Cutter System | Multi-direction swing, automatic angle identification, and 360-degree profile milling |
| Bending System | Switchable bending system for metal coils and aluminum profiles |
| Transmission | Roller screw with double rail positioning |
| Feeding System | Independent material rack and rolling feeding device |
| Software | Switchable workflows for different slotting and material-processing needs |
| Material Height | Up to 200 mm / approx. 7.87 in |
| Applicable Materials | Stainless steel, galvanized sheet, iron, aluminum, copper, edge aluminum, profiles, and special-shaped materials |
| File Formats | DXF, AI, PLT |
| Minimum Bending Radius | R = 3 mm |
| Material Thickness | 0.3-1.2 mm |
| Peak Power | 2000 W |
| Length Accuracy | 0.1 mm per meter |
| Feeding Torque | >45 Nm |
| Planer Slotting Torque Peak | >100 Nm |
| Arc Bending Torque Peak | >100 Nm |
| Dimensions | 1900 x 900 x 1600 mm / approx. 74.8 x 35.4 x 63.0 in |
| Surface Treatment | Full chrome plating |
| Net Weight | 550 kg |
| Rated Voltage | 120 V, 50-60 Hz |
| Working Pressure | 0.3-0.6 MPa |
Plan a production workflow
Need one machine for multiple material families?
Share your coil, profile, thickness, and finished-letter requirements. Tekkaform can map the right EX-P configuration.
