Material Range
- AluminumUp to 0.063'' thickness and 7 3/4 in height
- Stainless SteelUp to 0.040'' thickness and 7 3/4 in height
- Galvanized SteelUp to 0.040'' thickness and 7 3/4 in height
- Edgeless ExtrusionsTrim cap-free aluminum extrusion profiles
Channel Benders
EX-STANDARD SERIES
Tekkabend EX-S Channel Letter Bender
Trim cap-free channel letter bending for modern sign fabrication.
Tekkabend EX-S is built for shops producing premium edgeless, halo-lit, side-lit, and front-lit channel letters with cleaner bends, compact floor space, and repeatable output.
- Best For
- Trimless / edgeless channel letters and premium illuminated letters
- Slotting
- Plane Cutter / Milling Wheel Cutter
- Material Thickness
- 0.4-1.2mm
- Control System
- 4 - axis servo control system
Media
Letter applications
What Tekkabend EX-S can make.
A focused range for trimless, premium illuminated channel letters and detailed custom forms.
01

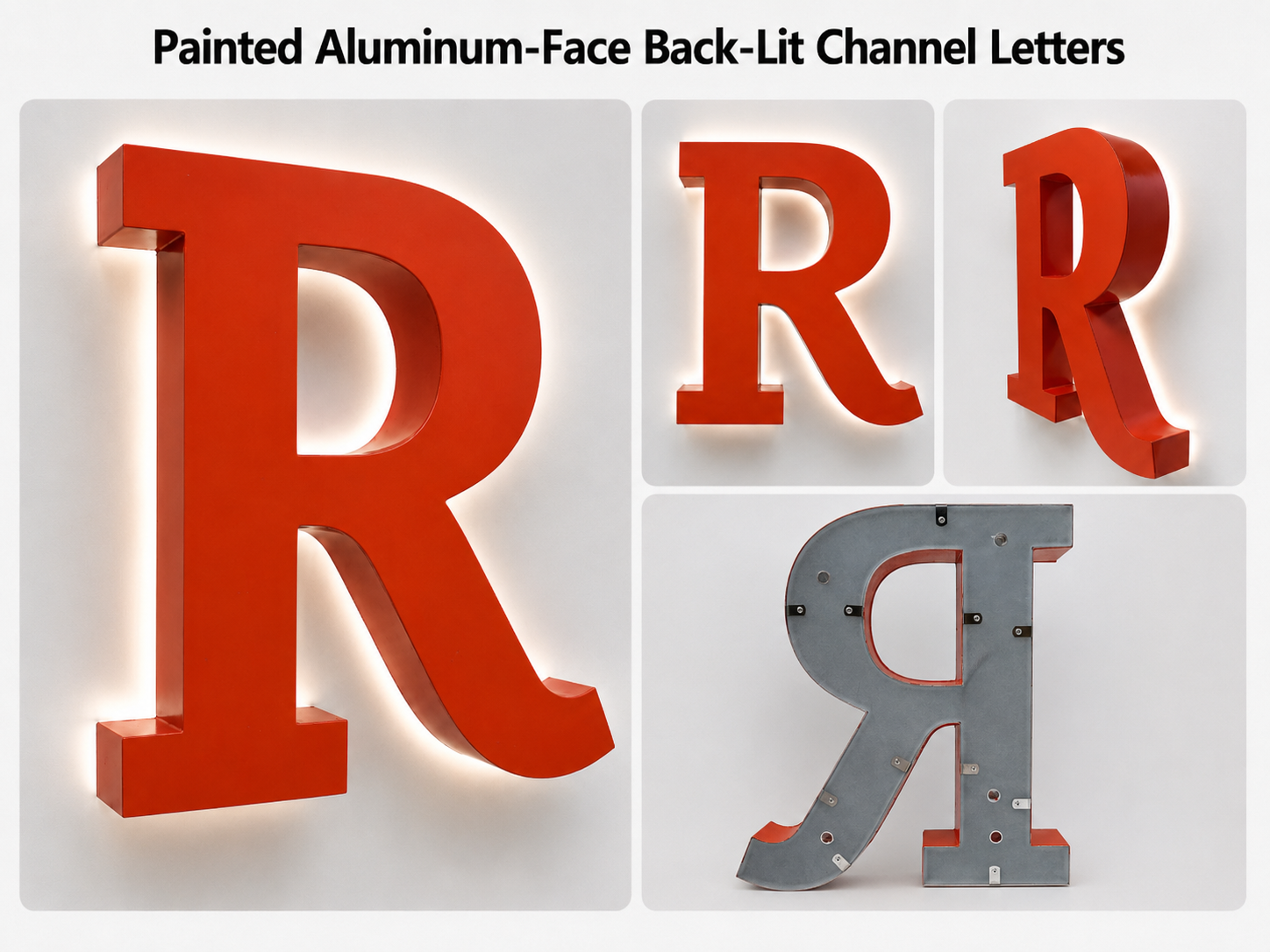

Trimless / halo-lit letters
Premium open-back returns for illuminated channel letters
02

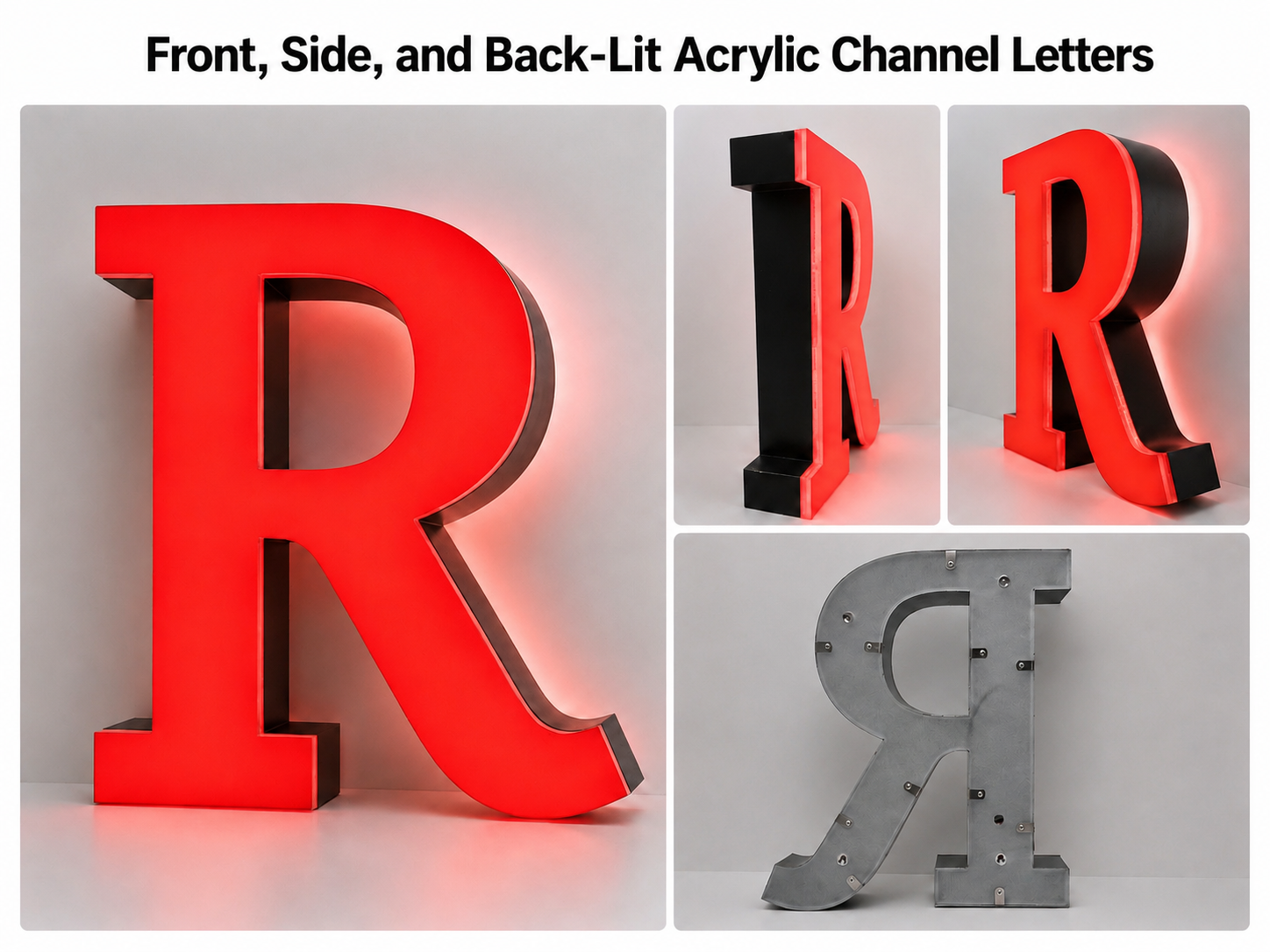

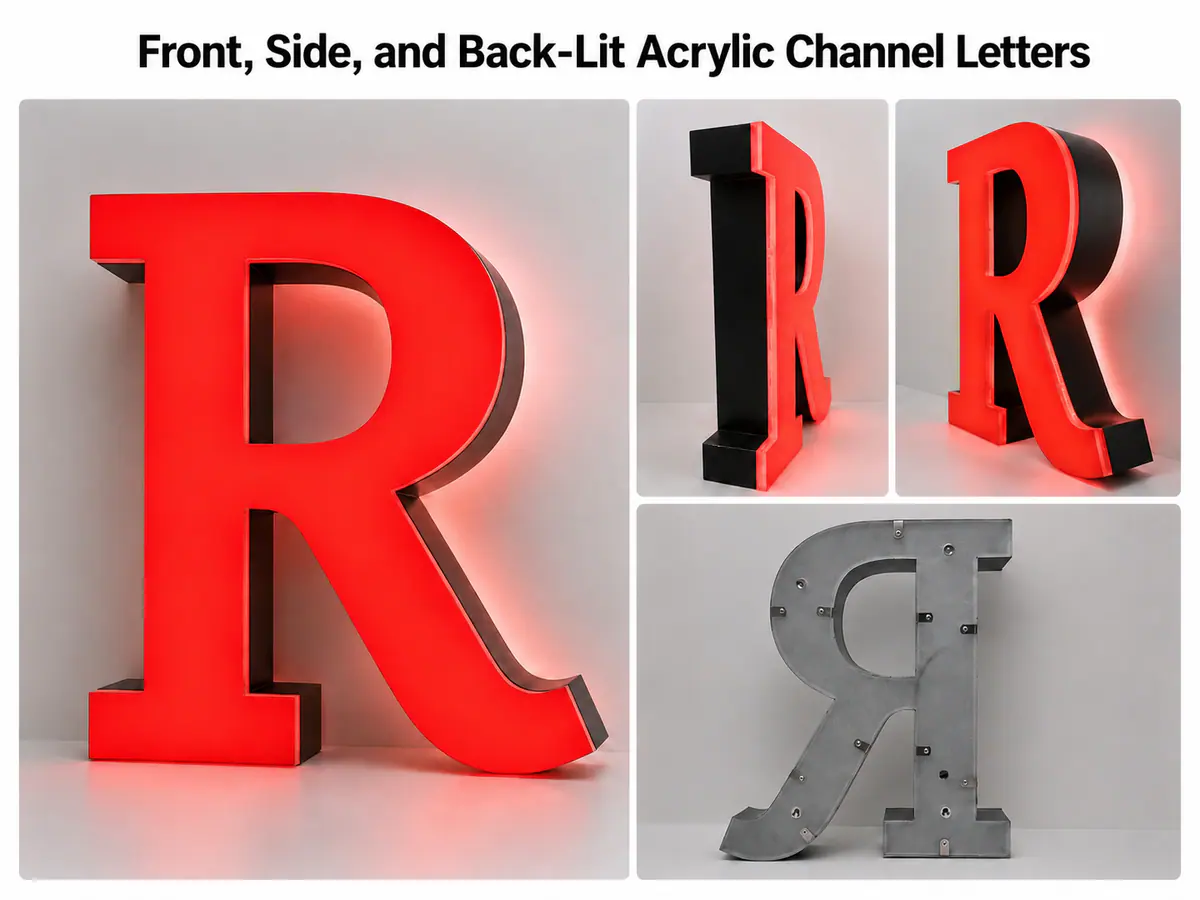

Front, side & back-lit letters
Layered illumination across the face, returns, and rear halo
03

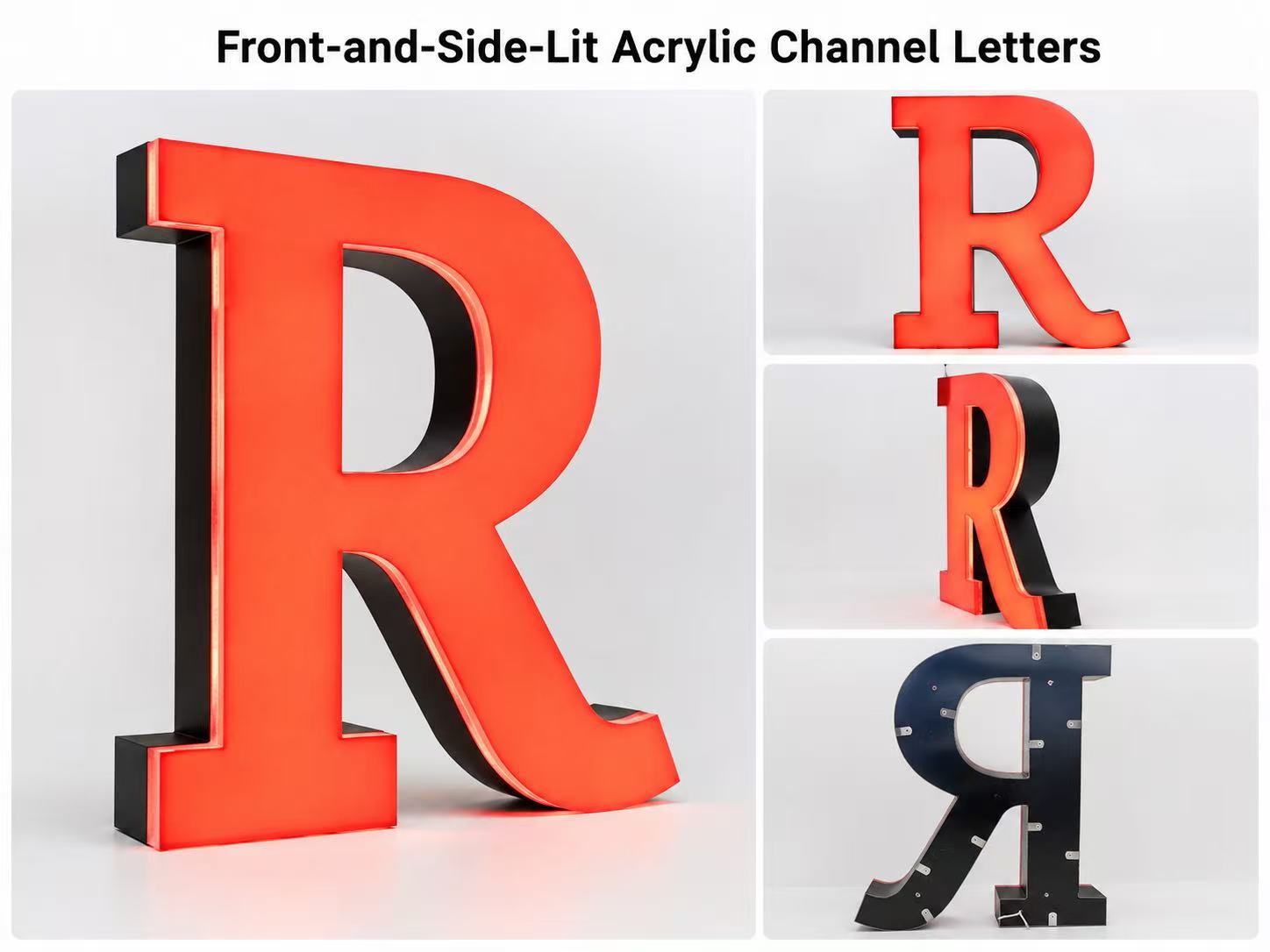

Front & side-lit letters
Illuminated faces with defined side returns
04

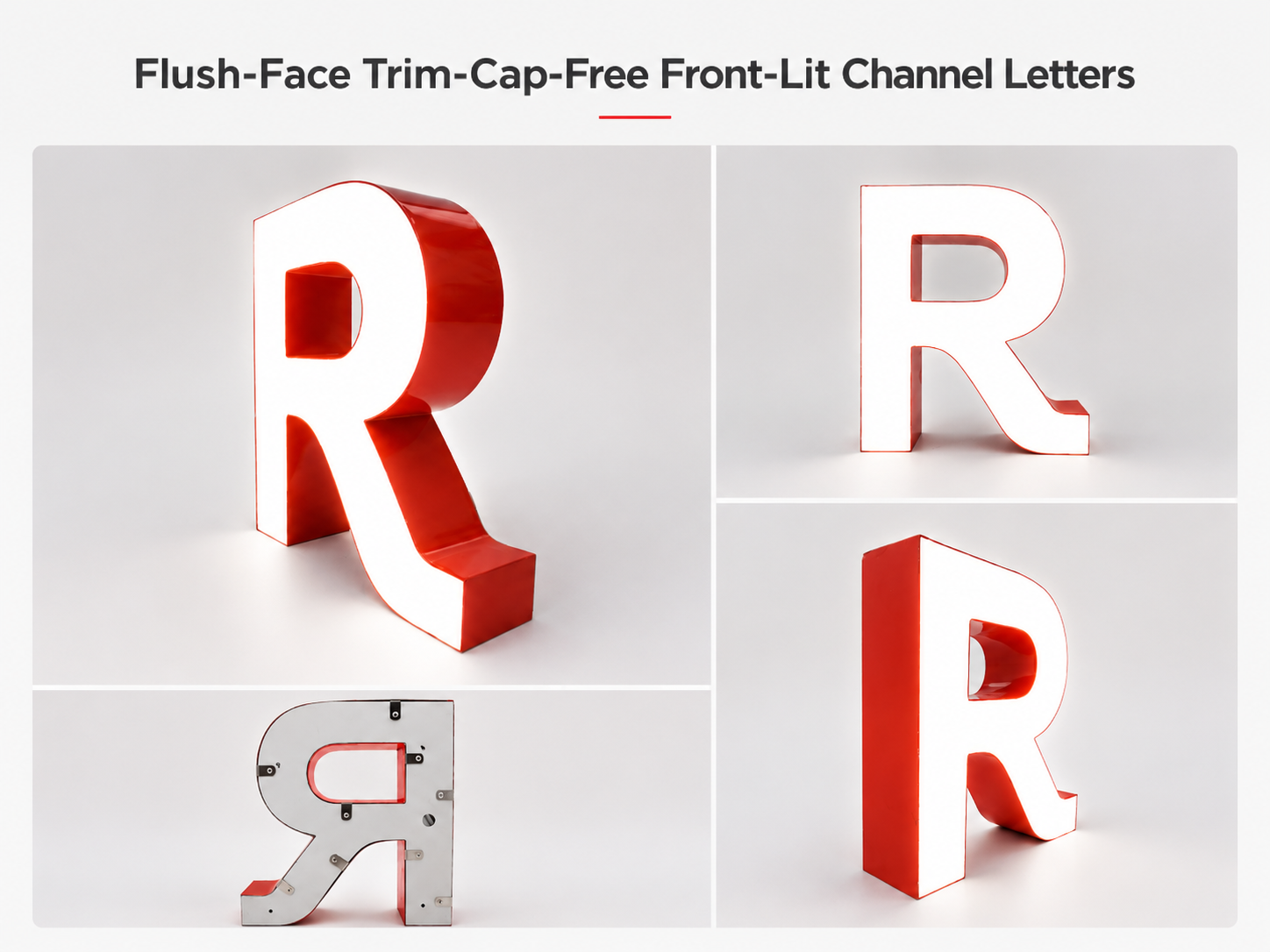

Flat-edge channel letters
Straight, precise return profiles
05

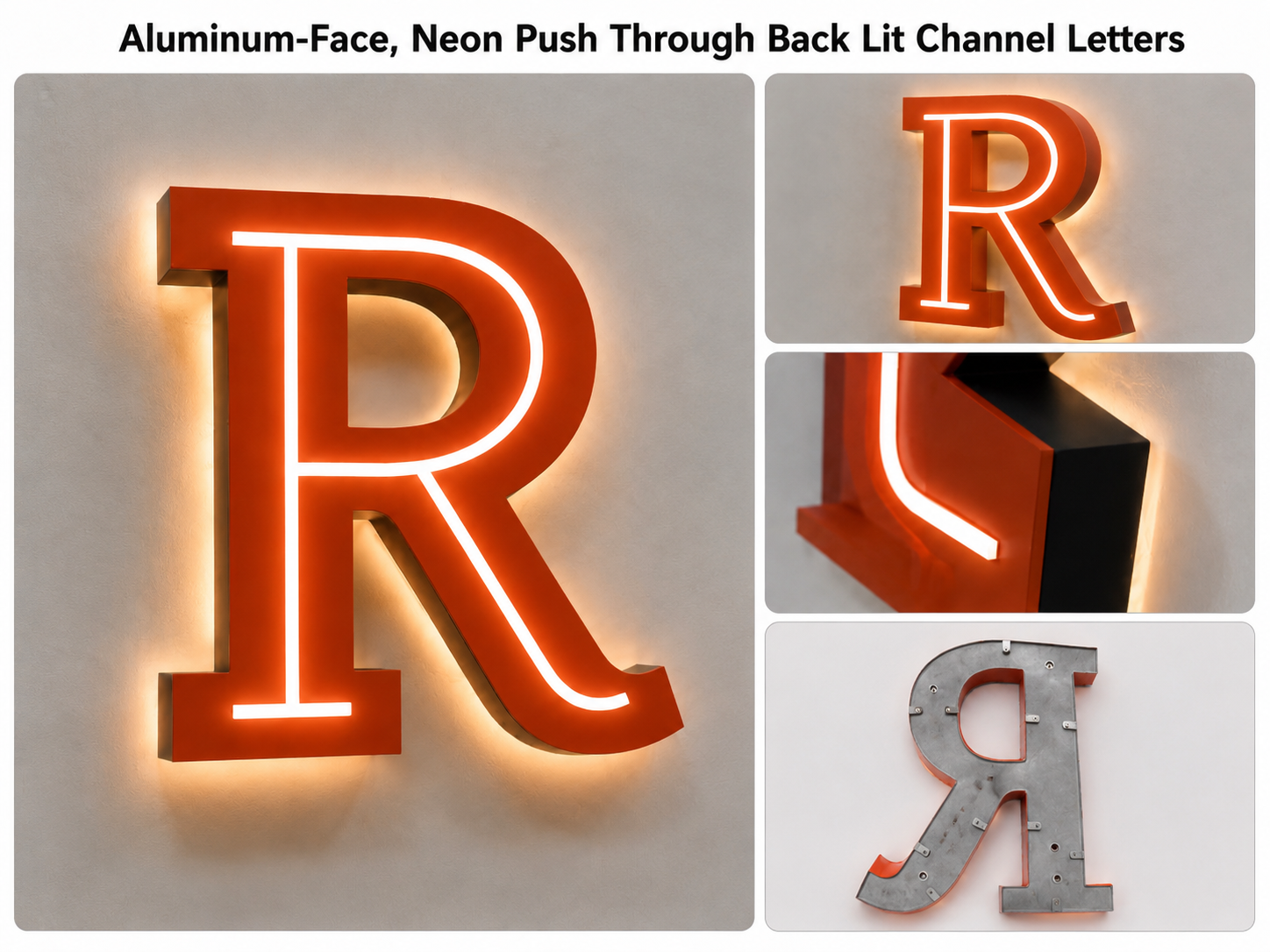

Neon push-through letters
Layered light lines with a premium finish
Machine specifications
Production Fit
- Best ForPremium trimless channel letter fabrication
- Profile SupportChannelum, LetterEdge, and common extrusion coils
- Coil Sizes1 3/8 in, 2 in, and 3 in extrusion coils
- Shop BenefitHigher output with cleaner bends and reduced manual dependency
Full technical specification13 items
| Technical Specifications | |
|---|---|
| Slotting Method | Plane Cutter / Milling Wheel Cutter |
| Bending Method | Double tools alternate bending system |
| Package Size | 1410 x 750 x 1560mm / 660 x 660 x 1110mm |
| Working Space | 2500 x 1100 x 1560mm |
| Suitable Material | Stainless steel, galvanized plate, aluminum plate, and super sign aluminum profile |
| Suitable Font | Seiko letter, resin letter, brimless letter, narrow edged letter |
| Slotting Trip | Plane cutter: 20-200mm; milling wheel cutter: 20-150mm |
| Material Thickness | 0.4-1.2mm |
| Min. Bending Angle | R6 |
| Control System | 4 - axis servo control system |
| File Format | DXF, PLT, AI |
| Rated Voltage | 120 V, 50-60 Hz |
| Machine Weight | 500kg |
