Production Fit
- Best ForTraditional trim cap and flange channel letters
- Core WorkflowFeeding, slotting, notching, flanging, bending, and cut-off
- ControlFull servo production system
- ValueEssential NF functions with lower configuration cost
Channel Benders
NF-LITE SERIES

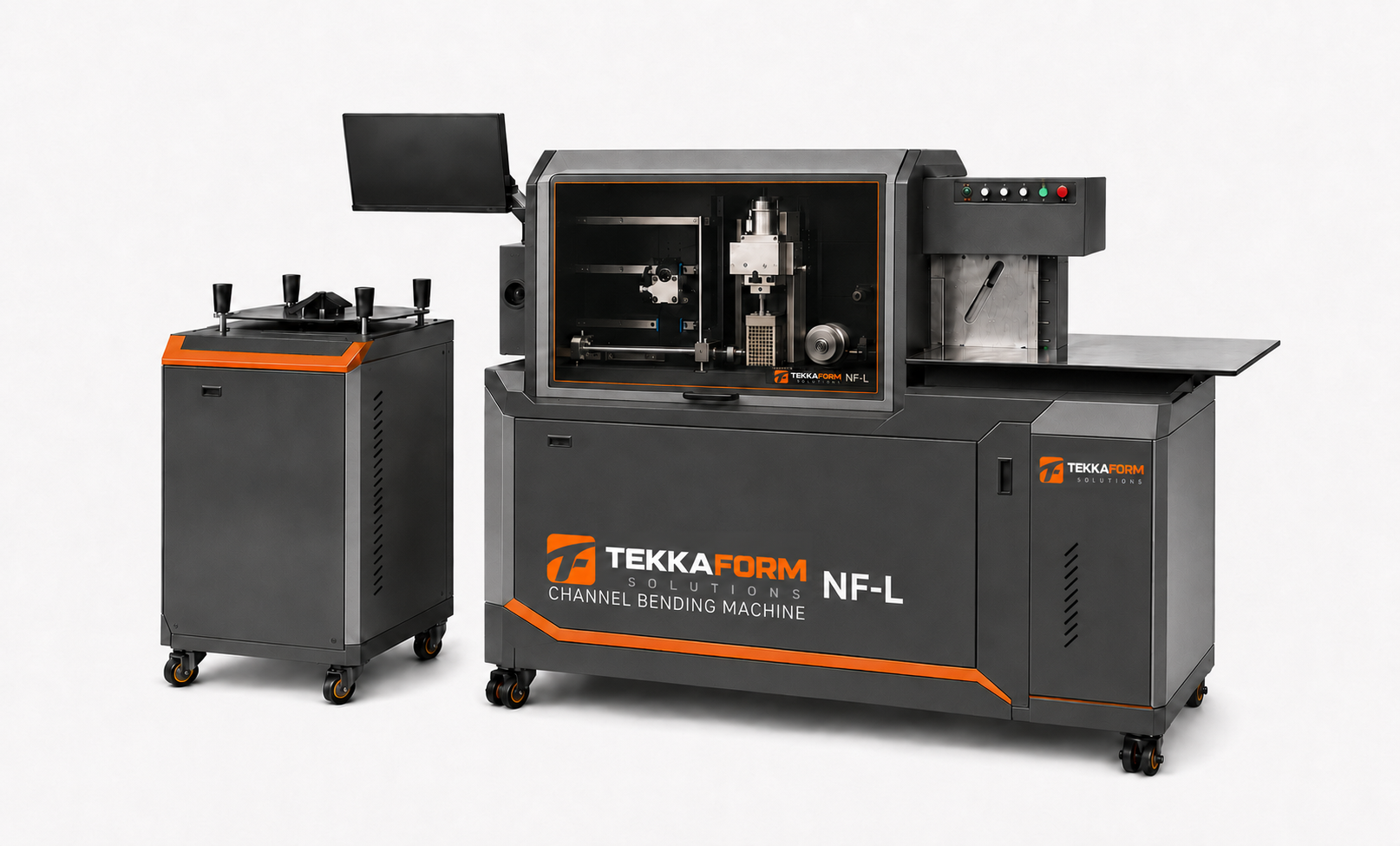

Tekkabend NF-L Channel Letter Bender
Essential flange-letter functions in a practical, value-focused configuration.
Tekkabend NF-L combines automatic feeding, slotting, notching, flanging, bending, and cut-off for everyday North American channel letter production.
- Best For
- Front-lit, back-lit, front and back-lit, and specialty flange channel letters
- Functions
- Feeding / Slotting / Notching / Flanging / Bending / Cut-off
- Material Width
- Up to 8.6 in
- Material Thickness
- Aluminum 0.08 in / Stainless steel 0.06 in
Media
Letter applications
What Tekkabend NF-L can make.
A value-focused range for traditional trim cap and flange-letter production with dependable notching and bending.
01

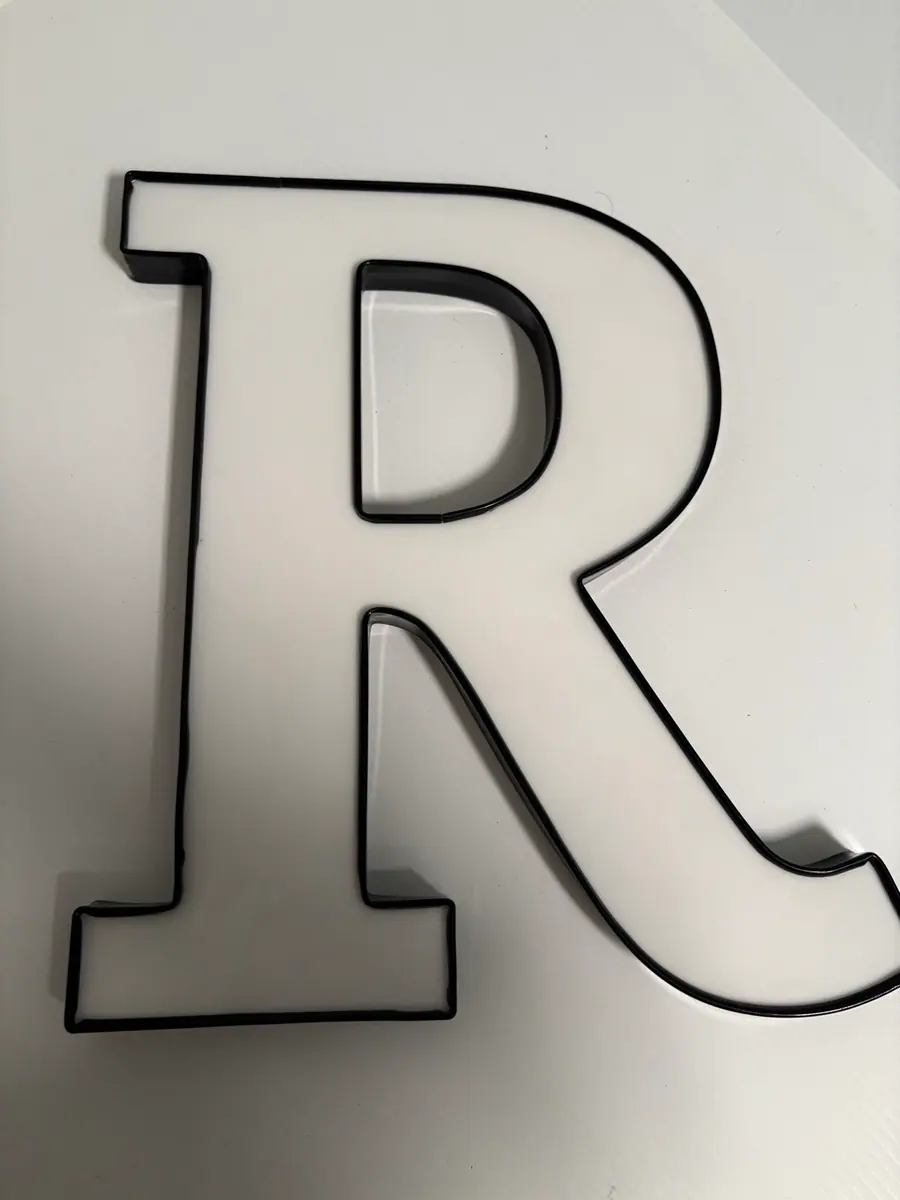

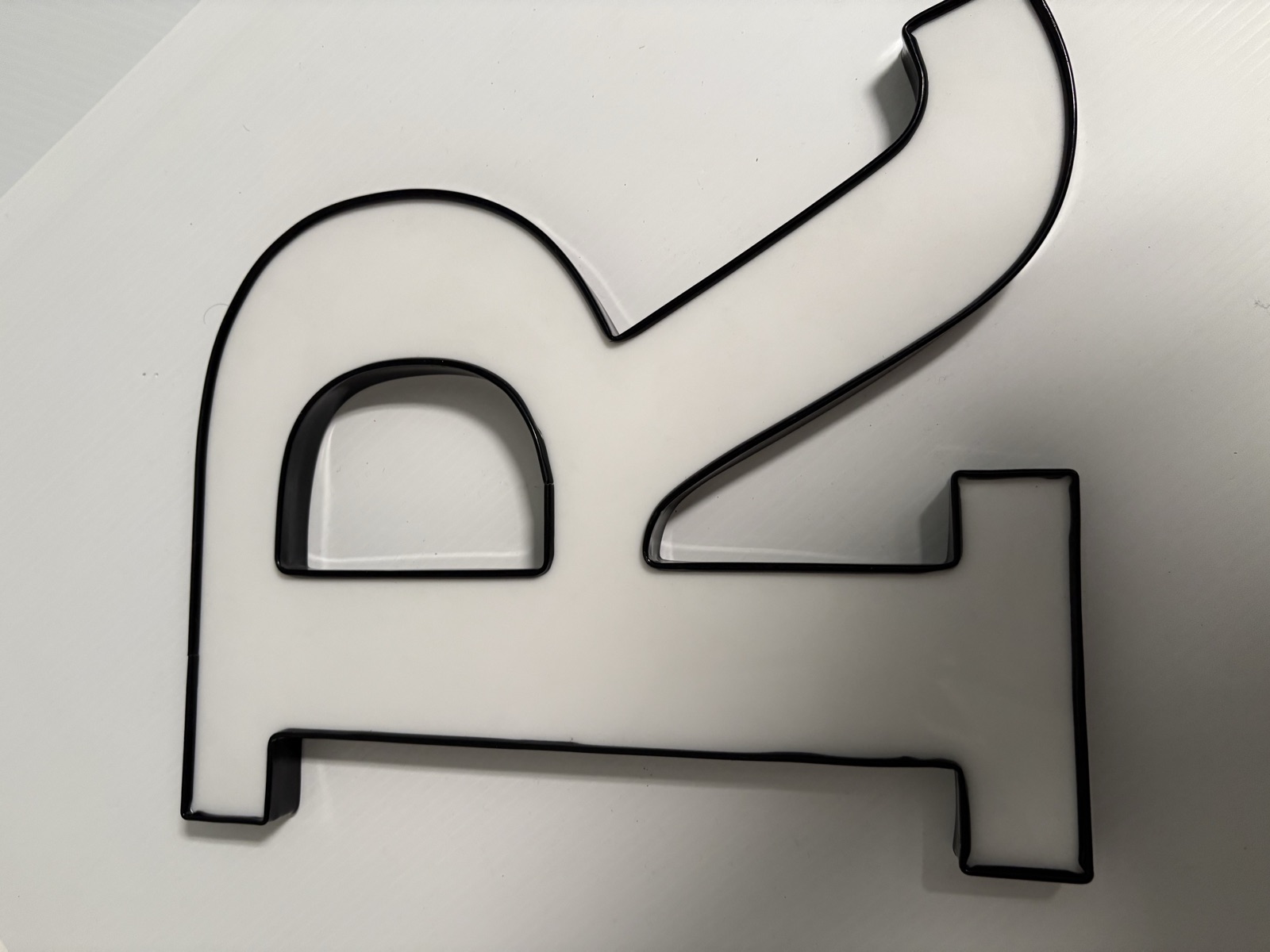

Trim-cap front-lit letters
Traditional faces with a finished trim edge
02

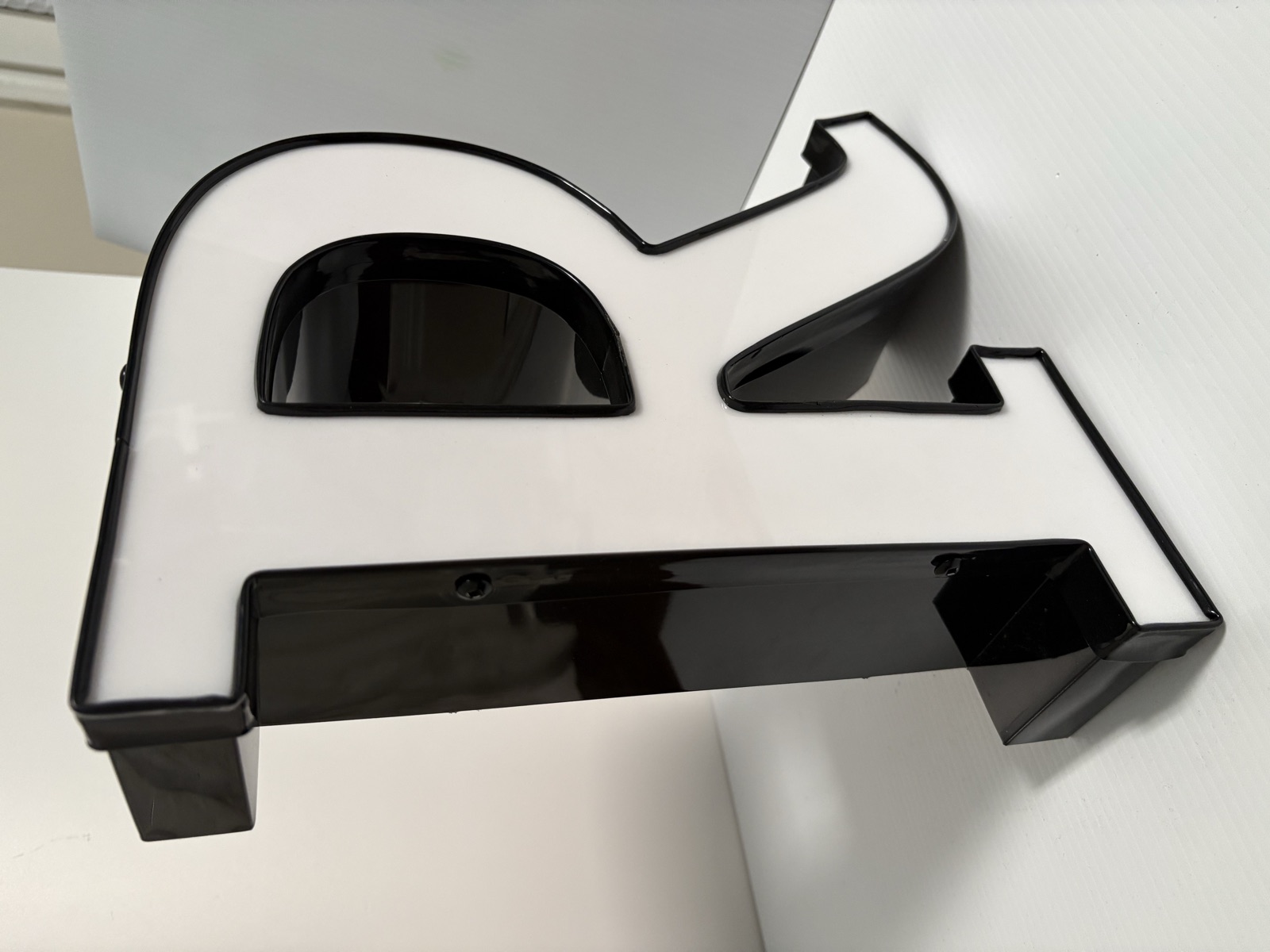

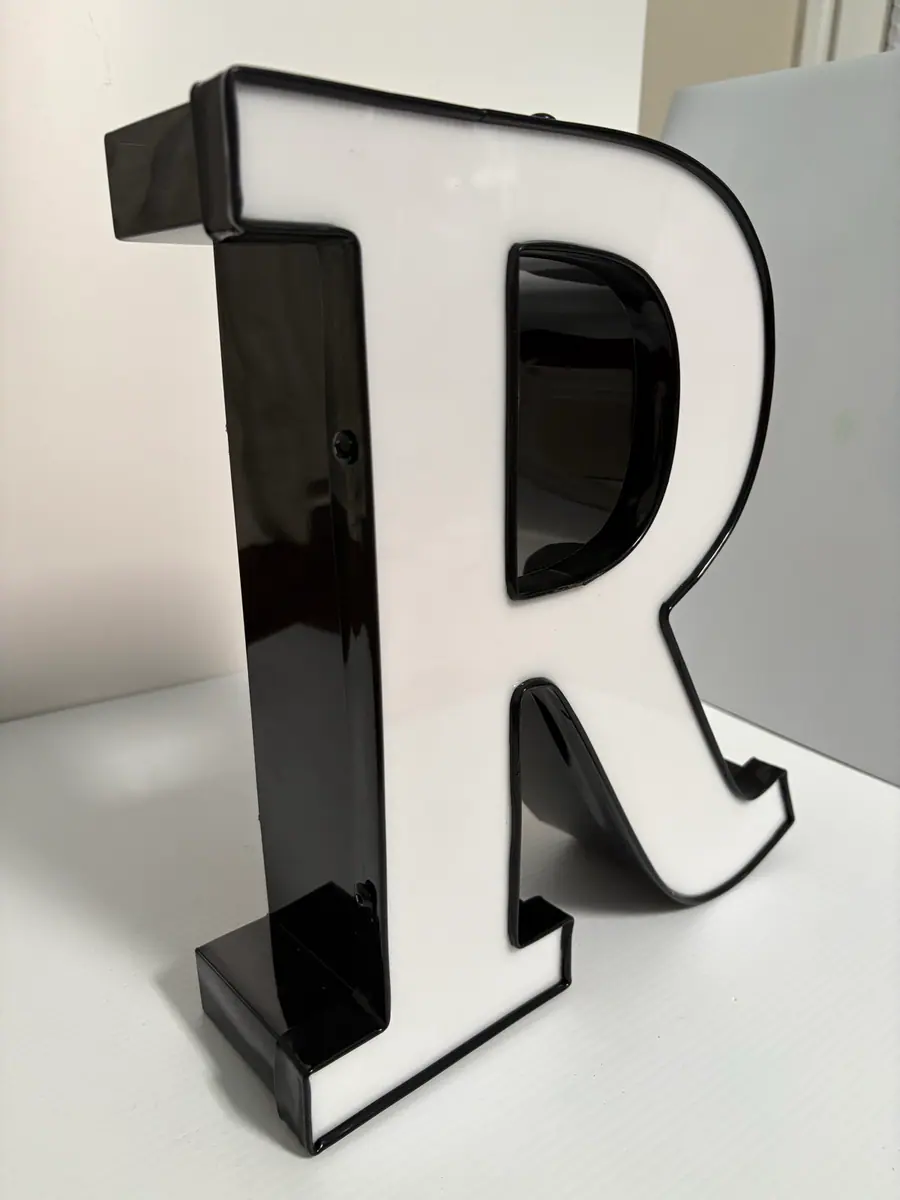

Front & back-lit letters
Trim-cap forms ready for layered illumination
03

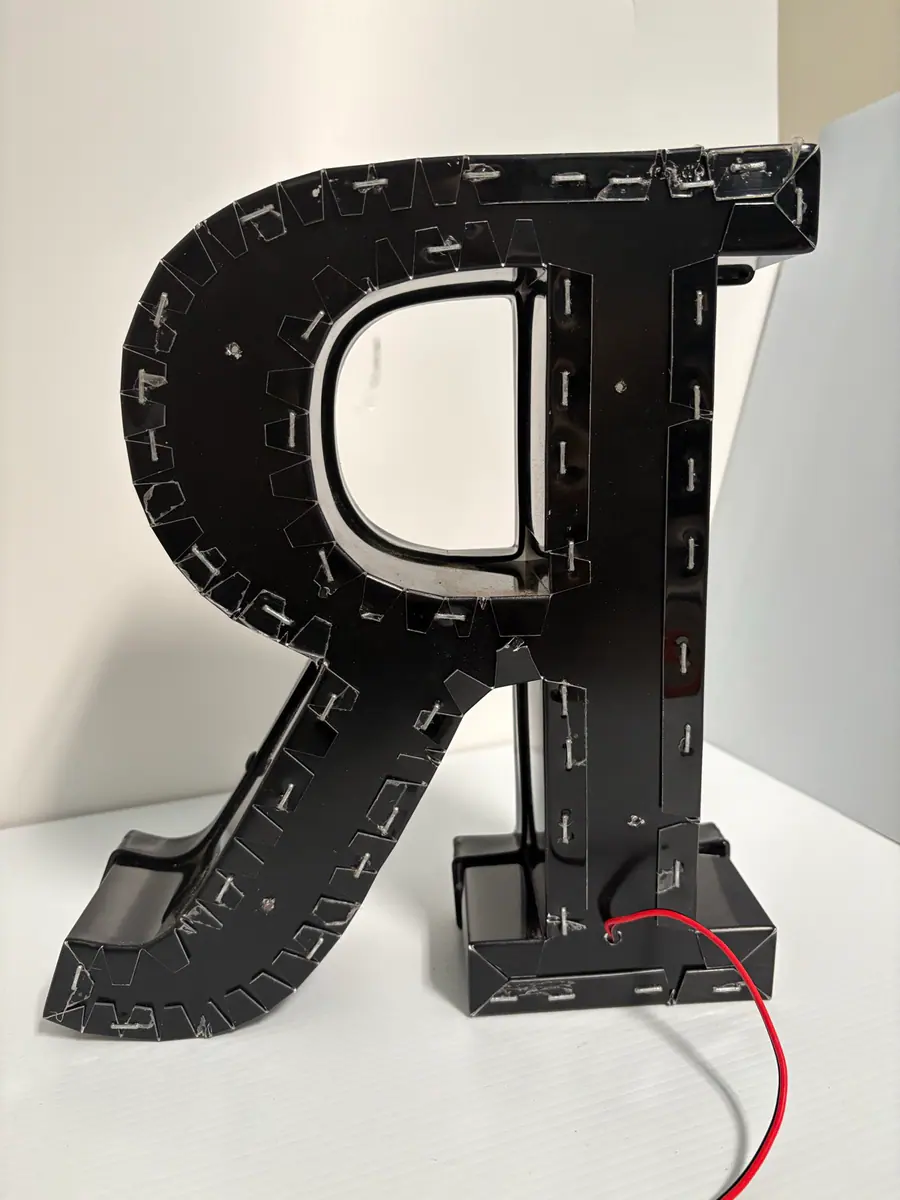

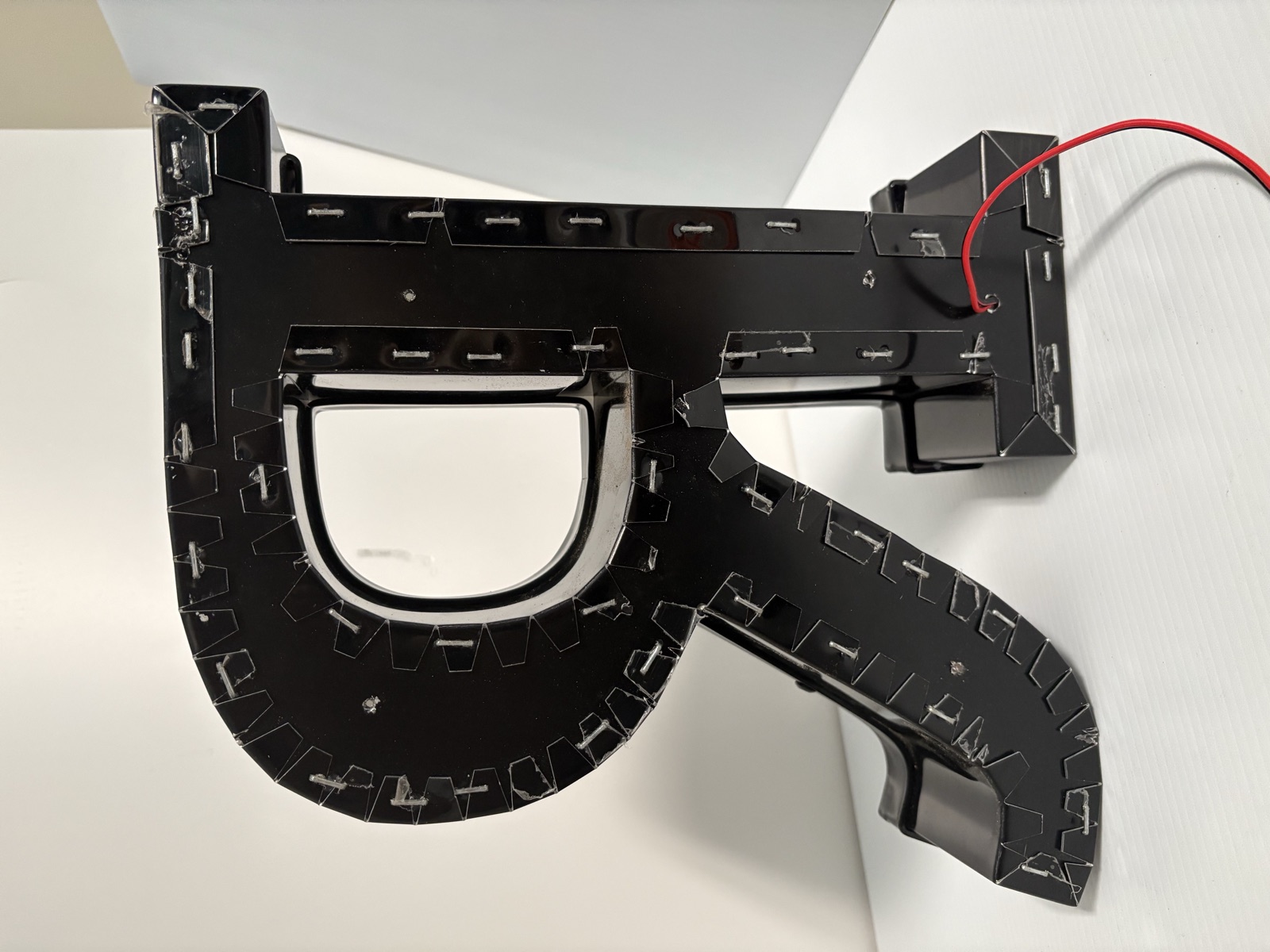

Notched curves
Controlled relief cuts for smooth rounded returns
04

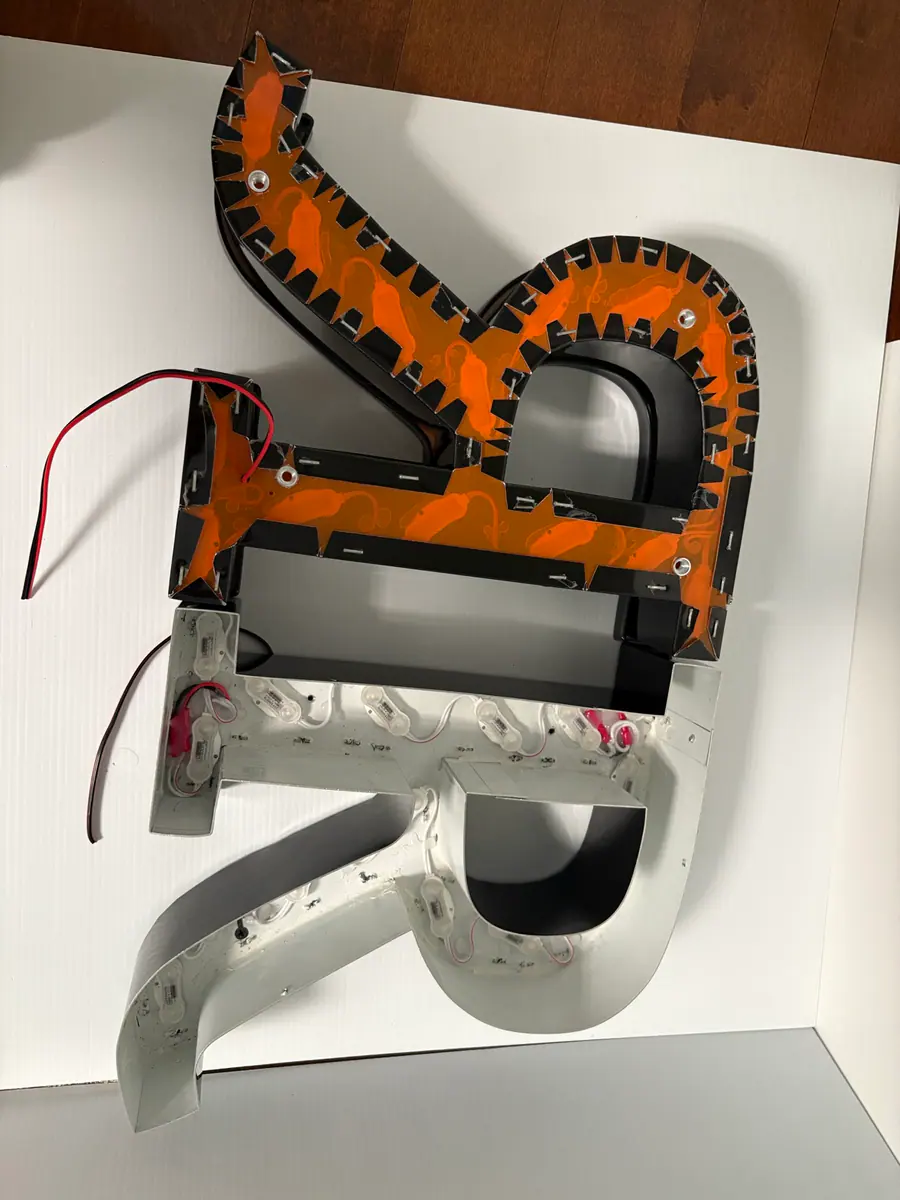

Flanged returns
Consistent flanges for traditional trim-cap assembly
05

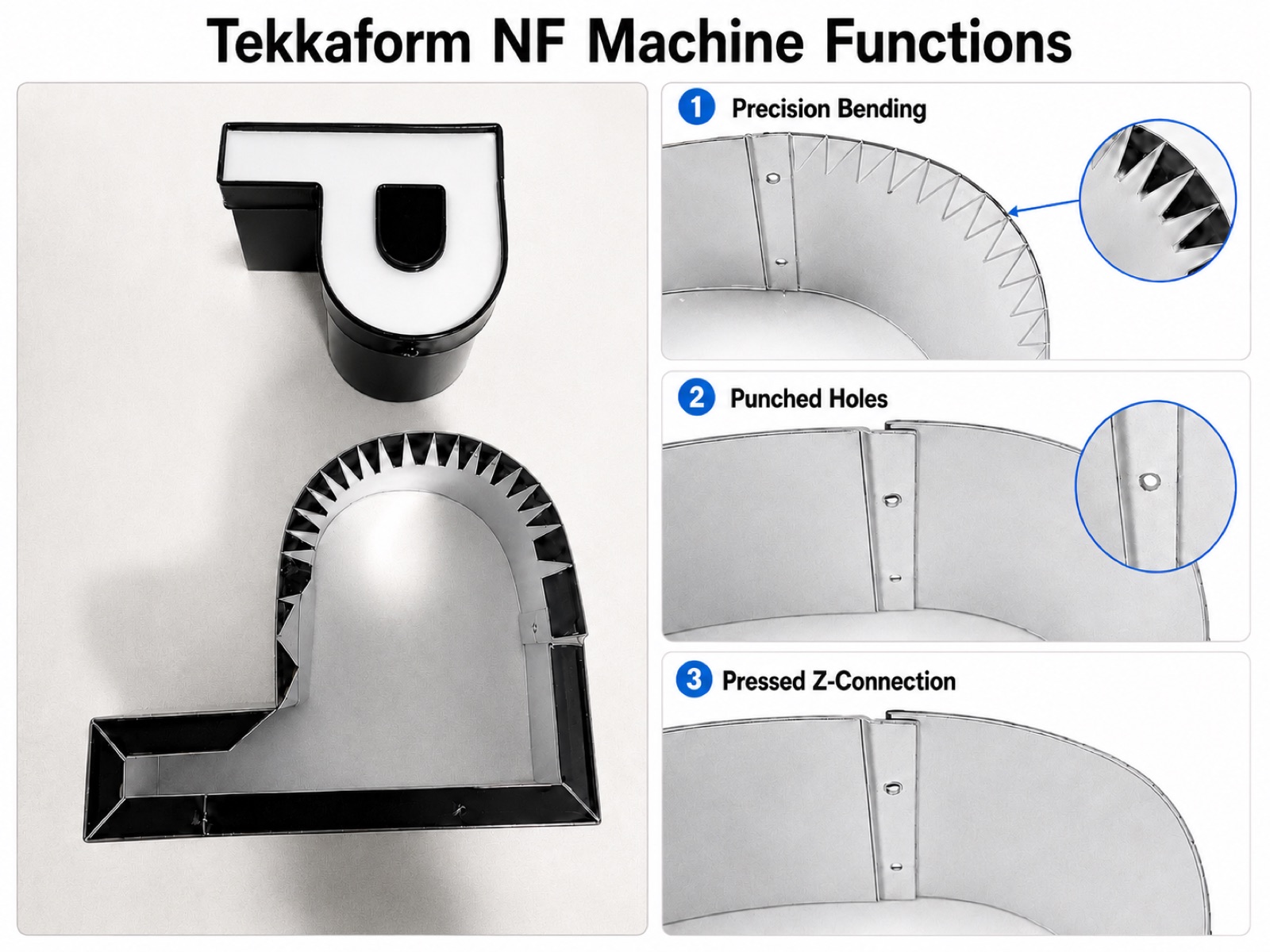

Complex trim-cap forms
Detailed bends and return profiles for custom letter shapes
Machine specifications
Material Range
- MaterialsStainless steel and flat aluminum
- Material WidthUp to 8.6 in
- Flat AluminumUp to 0.08 in thick
- Stainless SteelUp to 0.06 in thick
Full technical specification10 items
| Technical Specifications | |
|---|---|
| Model | Tekkaform NF-LITE |
| Applicable Materials | Stainless steel and flat aluminum |
| Material Width | Up to 8.6 in |
| Flat Aluminum Thickness | Up to 0.08 in |
| Stainless Steel Thickness | Up to 0.06 in |
| Motor Type | Full servo motors |
| File Formats | DXF / AI |
| Rated Voltage | 120 V, 50-60 Hz |
| Net Weight | 800 kg |
| Dimensions | 133.9 in L x 63.8 in W x 53.1 in H |
Plan a production workflow
Is NF-L the right value-focused configuration for your shop?
Share your material, letter style, and daily output needs. Tekkaform can confirm the appropriate NF configuration.
