NF-PRO SERIES
Tekkabend NF-P Channel Letter Bender
The complete NF workflow for advanced flange and connection processing.
Tekkabend NF-P integrates feeding, slotting, notching, flanging, punching, Z-connection processing, bending, and cut-off in one full-servo platform.
- Best For
- Advanced front-lit, back-lit, combination-lit, and specialty flange letters
- Advanced Processing
- Drain holes / Connection holes / Z-connections
- Material Width
- Up to 8.6 in
- Material Thickness
- Aluminum 0.08 in / Stainless steel 0.06 in
Media
Letter applications
What Tekkabend NF-P can make.
Traditional trim cap production paired with the advanced notching, punching, and Z-connection functions of NF-P.
01

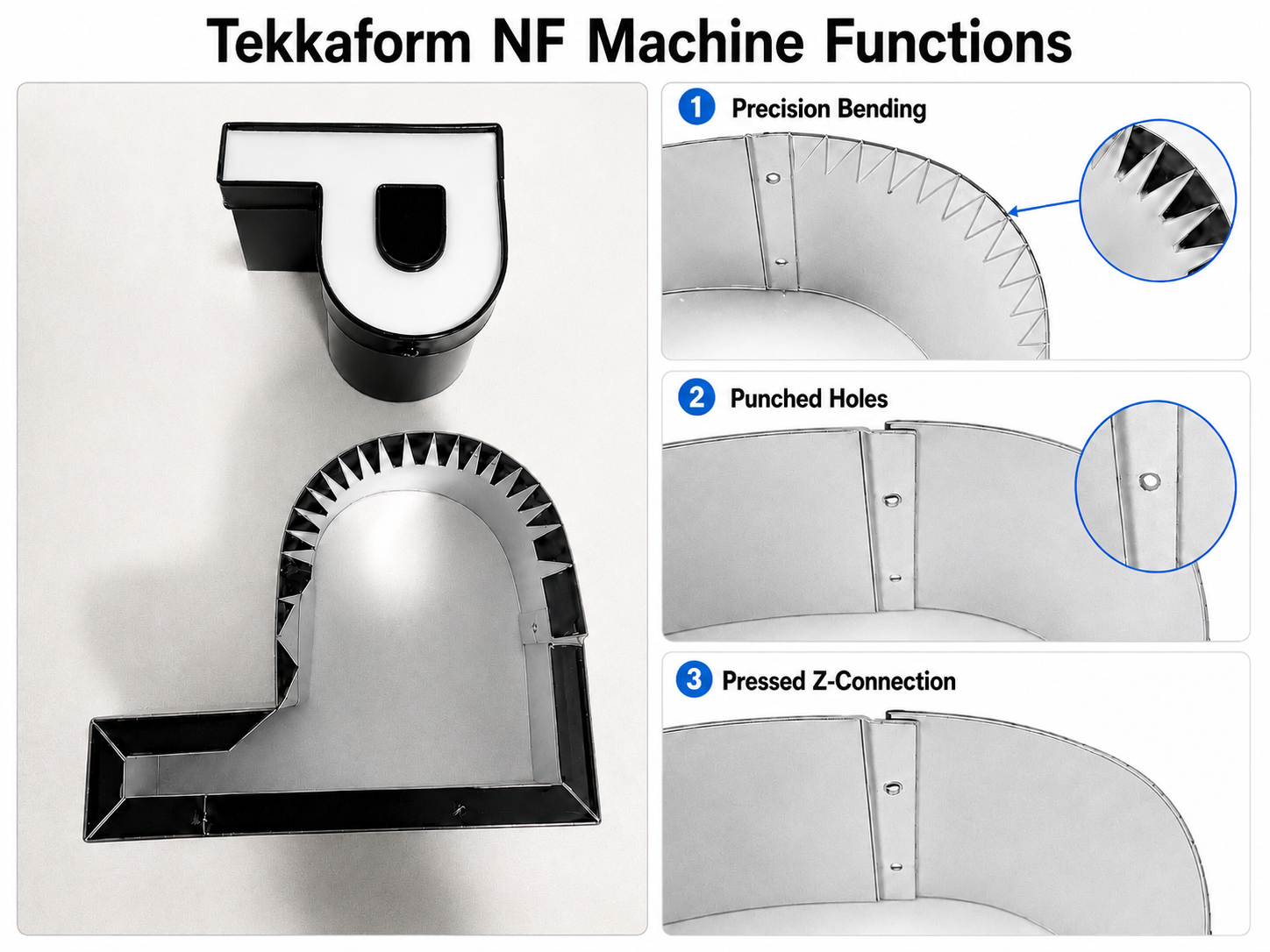

NF-P processing functions
Precision bends, punched holes, and pressed Z-connections
02
Front-lit trim cap letters
Reliable traditional returns with a finished trim edge
03

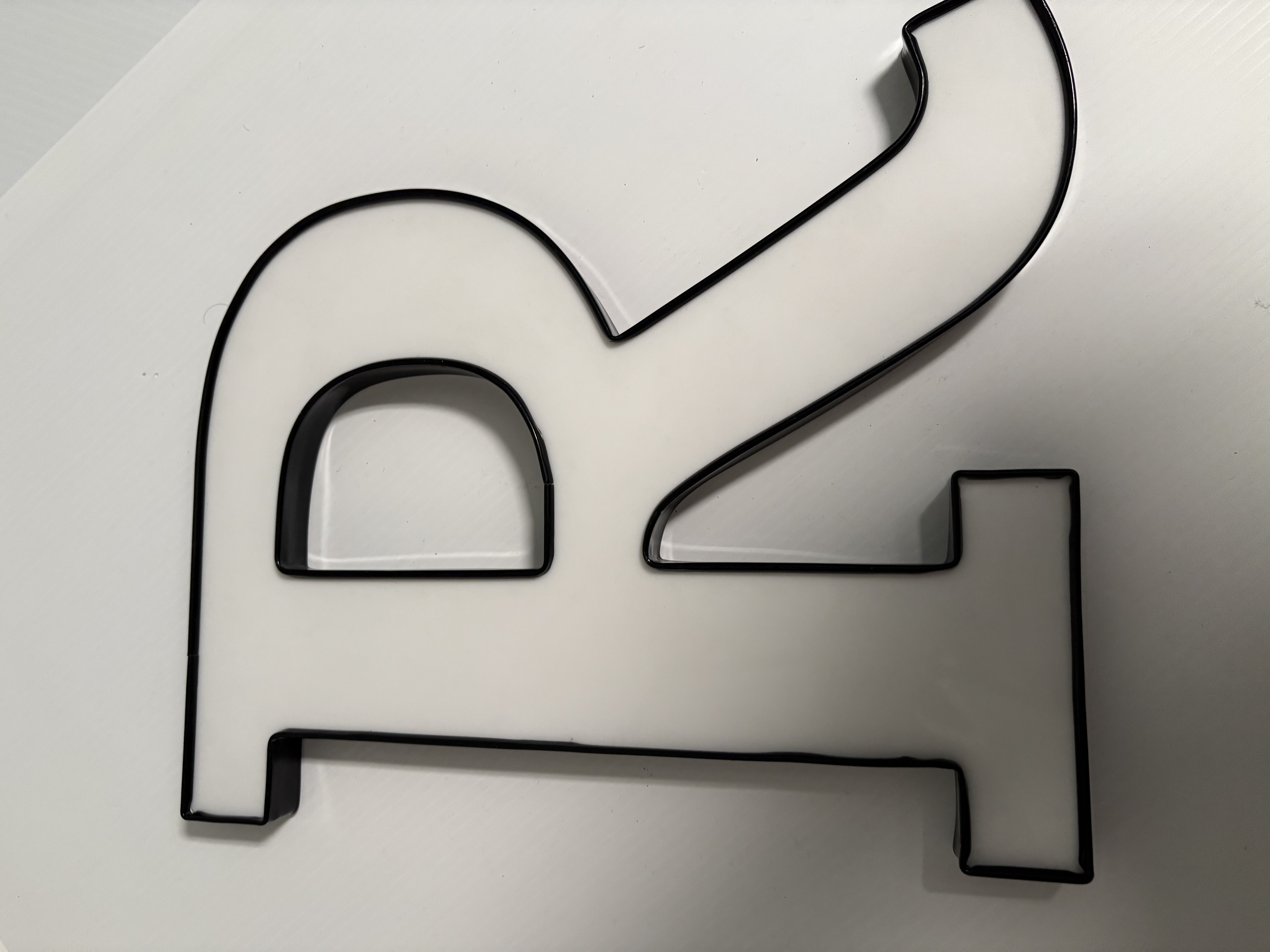

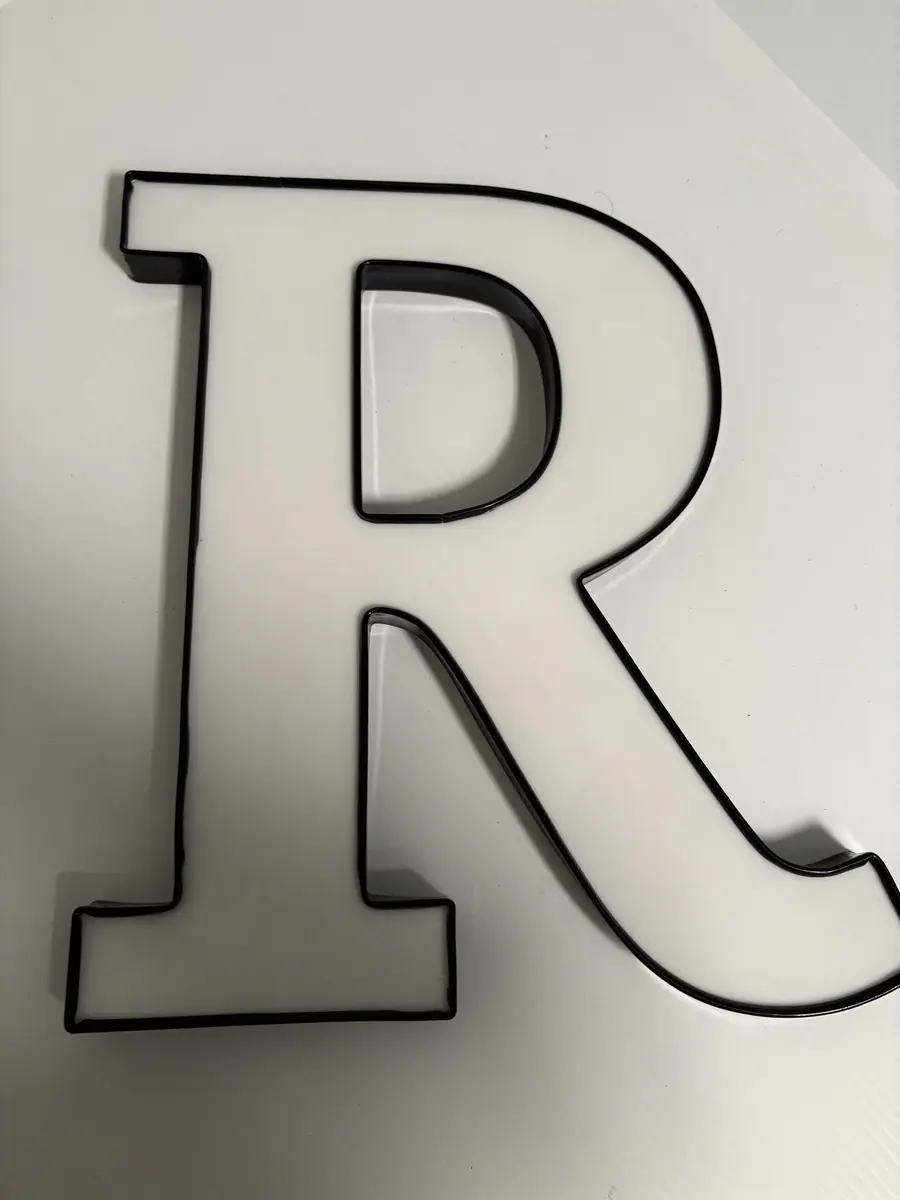

Front and back-lit letters
Trim-cap forms for layered illuminated-letter builds
04

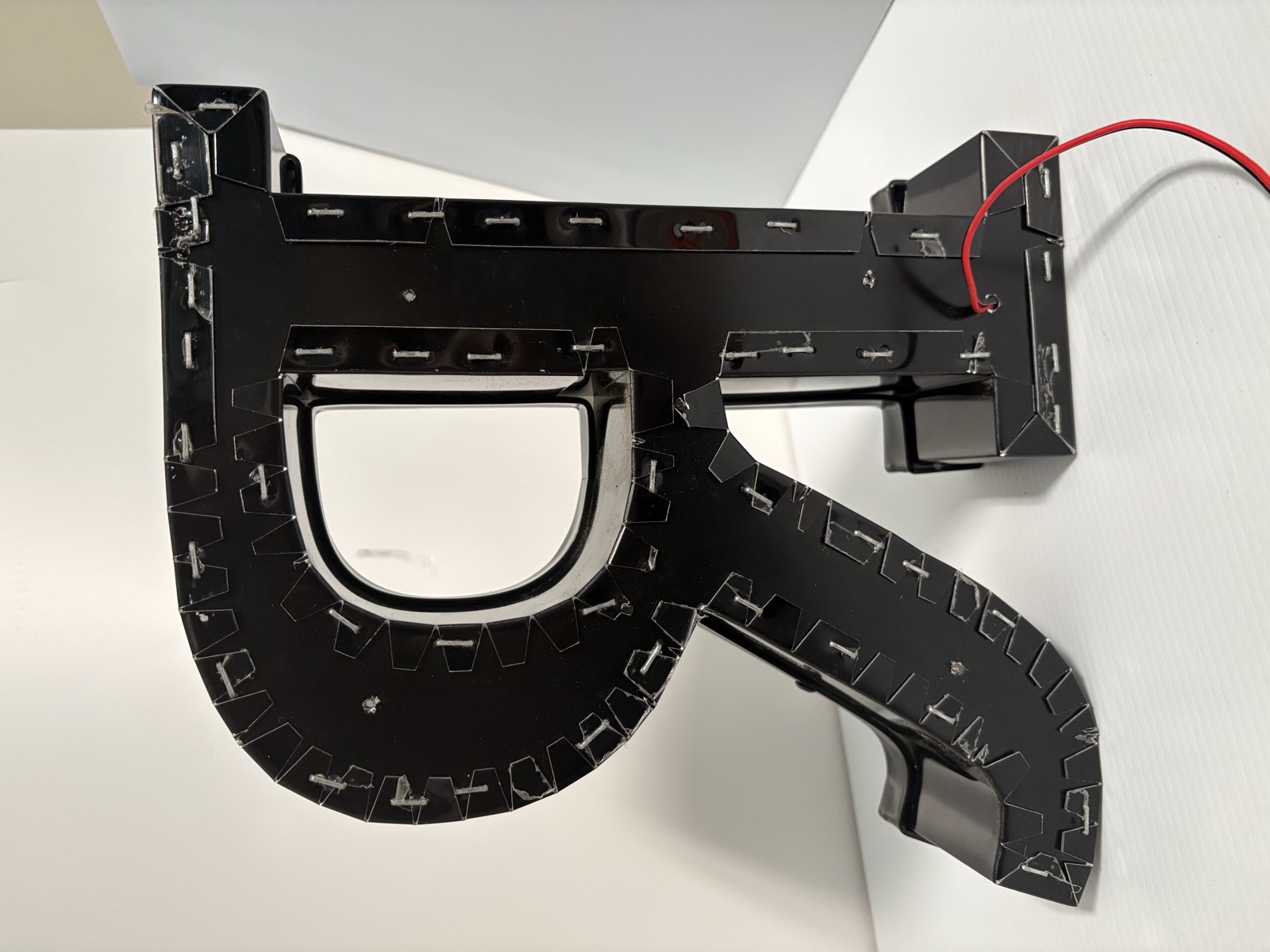

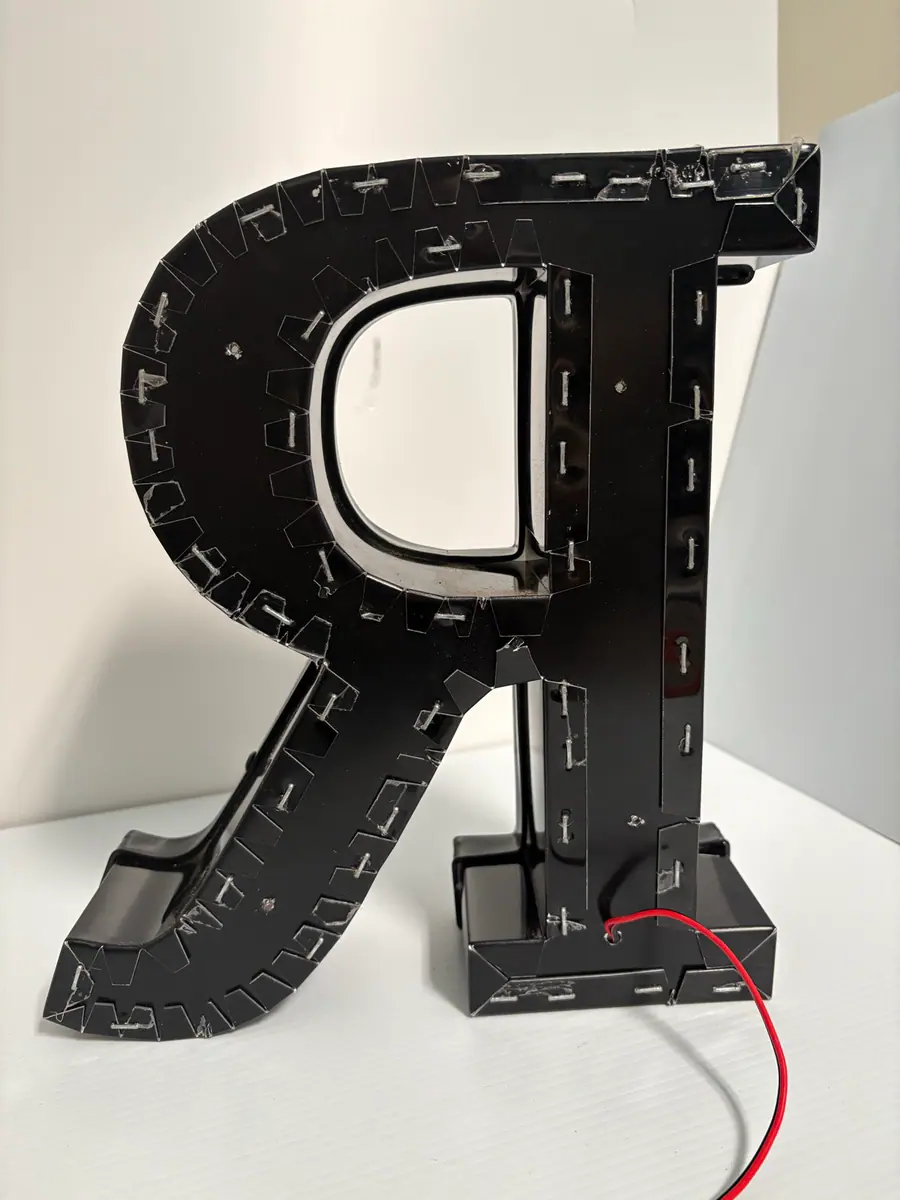

Controlled notched curves
Consistent relief cuts for smooth, repeatable returns
05

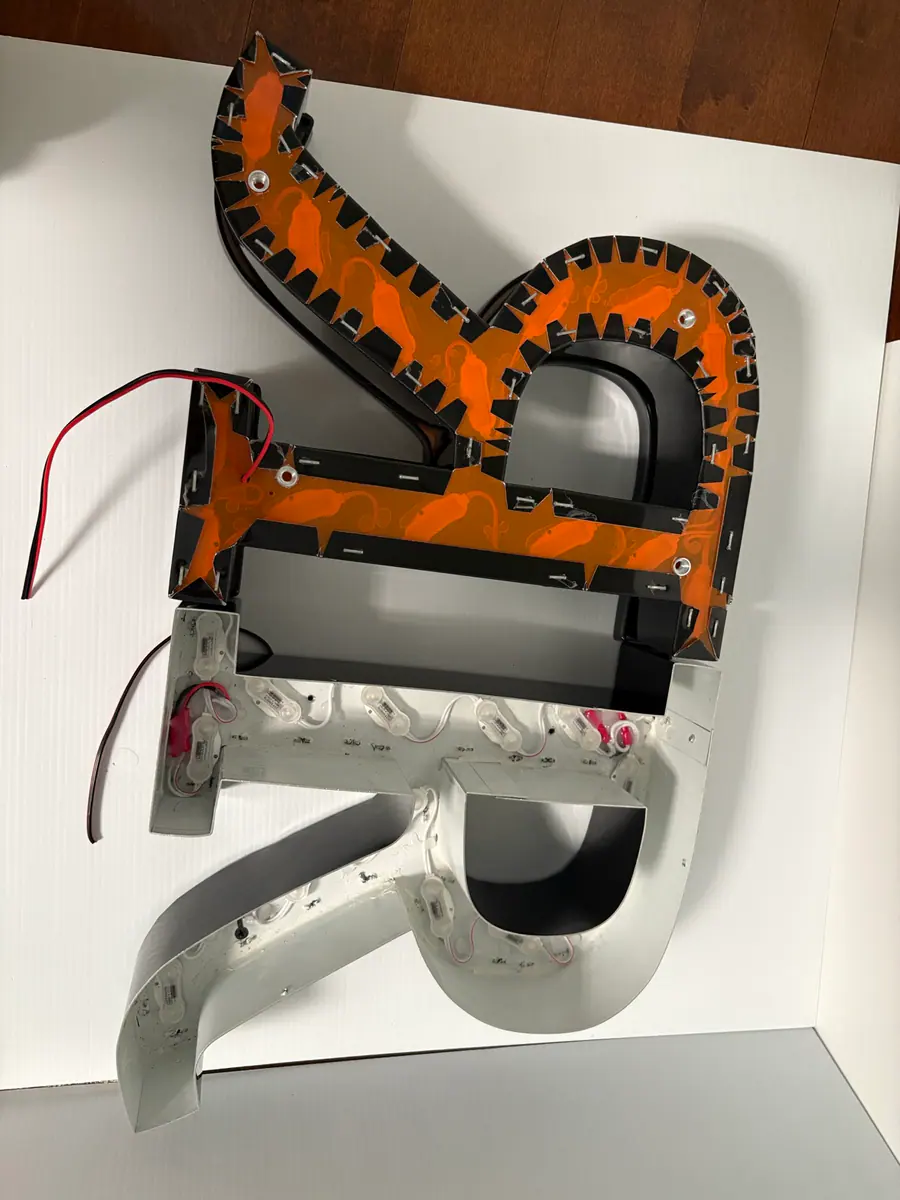

Flanged return profiles
Accurate flanges for traditional trim-cap assembly
Machine specifications
Material Range
- MaterialsStainless steel and flat aluminum
- Material WidthUp to 8.6 in
- Flat AluminumUp to 0.08 in thick
- Stainless SteelUp to 0.06 in thick
Full technical specification10 items
| Technical Specifications | |
|---|---|
| Model | Tekkaform NF-PRO |
| Applicable Materials | Stainless steel and flat aluminum |
| Material Width | Up to 8.6 in |
| Flat Aluminum Thickness | Up to 0.08 in |
| Stainless Steel Thickness | Up to 0.06 in |
| Motor Type | Full servo motors |
| File Formats | DXF / AI |
| Rated Voltage | 120 V, 50-60 Hz |
| Net Weight | 800 kg |
| Dimensions | 133.9 in L x 63.8 in W x 53.1 in H |
Plan an advanced workflow
Need the complete NF processing configuration?
Share your letter construction, connection method, and production target. Tekkaform can map the NF-P workflow to your shop.
