Channel Benders

NF-STANDARD SERIES

Tekkabend NF-S Channel Letter Bender

Software-driven bending for traditional channel letter fabrication.

Built for North America’s traditional trim cap channel letters, featuring notching and flanging capabilities.

Best For
Trim Cap Letter, Cloud Letter, Front Lit, Reverse/Halo Lit, Front and Reverse Lit, Traditional Channel Letters
Slotting
Plane Cutter / Milling Wheel Cutter
Material Thickness
0.4-2.0mm
Control System
8 - axis servo control system
Get Quote View Specifications

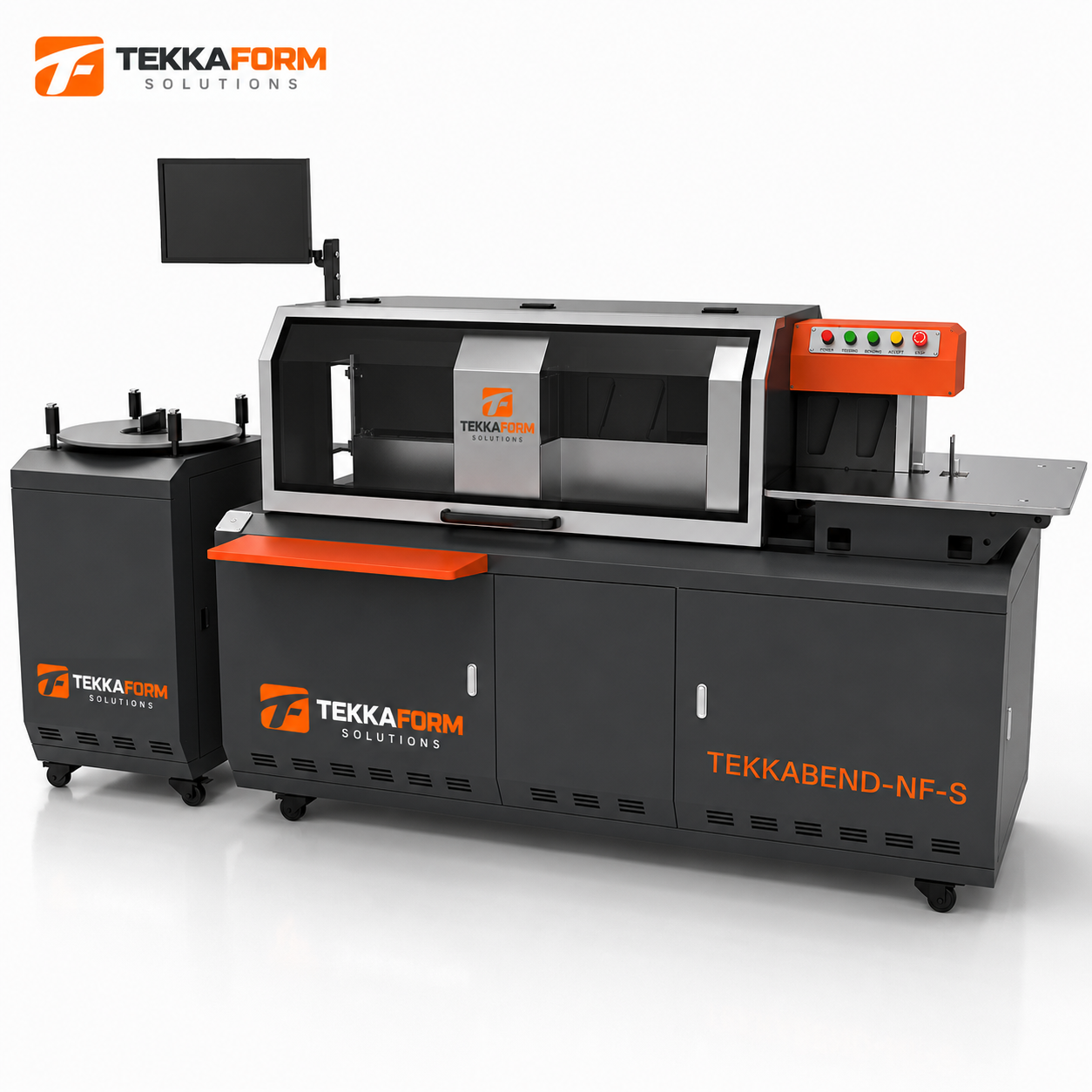

Tekkabend NF-S

Media

Tekkabend NF-S
Tekkabend NF-S
Tekkabend NF-S detail

Letter applications

What Tekkabend NF-S can make.

Built for North America’s traditional trim cap channel letters, with notching and flanging for dependable assembly.

Trim-cap front-lit letters 01 Trim-cap front-lit letters Traditional faces with a finished trim edge Front & back-lit letters 02 Front & back-lit letters Trim-cap forms ready for layered illumination Notched curves 03 Notched curves Controlled relief cuts for smooth rounded returns Flanged returns 04 Flanged returns Consistent flanges for traditional trim-cap assembly Complex trim-cap forms 05 Complex trim-cap forms Detailed bends and return profiles for custom letter shapes

Machine specifications

Material Range

  • AluminumUp to 0.063'' thickness and 7 3/4 in height
  • Stainless SteelUp to 0.040'' thickness and 7 3/4 in height
  • Aluminum SheetFront lit, Halo lit, Front/Back lit, Light Boxes, Cloud Letter
  • Galvanized SteelUp to 0.040'' thickness and 7 3/4 in height

Production Fit

  • Best ForTraditional notching and flanging assembly
  • WorkflowFully software-driven operation with fewer manual tool changes
  • V-notchingServo-controlled rotating V-notcher from 30 to 120 degrees
  • Shop BenefitStable output, stronger material capability, and practical daily production
Full technical specification15 items
Technical Specifications
Slotting MethodPlane Cutter / Milling Wheel Cutter
Bending MethodDouble tools alternate bending system
Package Size2200 x 1800 x 1600mm / 660 x 660 x 1110mm
Working Space3266 x 1184 x 1783mm
Suitable MaterialStainless steel, galvanized plate, aluminum plate
Suitable FontSeiko letter, resin letter, brimless letter, cut tooth letter
Slotting Trip10-200mm
Material Thickness0.4-2.0mm
Min. Bending AngleR6
V-cut MethodServo motor control
V-cut Angle30-120 deg
Control System8 - axis servo control system
File FormatDXF, PLT, AI
Rated Voltage120 V, 50-60 Hz
Machine Weight800kg

Plan a production workflow

Need help deciding whether NF fits your shop?

Tell us your material type, return depth, and daily production goal. Tekkaform can recommend the right configuration.

Request consultation
